CTH Series – CLAMP-ON, Closed-Loop Current Transducer with “FIXED CORE” performance

Closed-loop, Clamp-on current Transducer for ranges of 100A to 10kA have an extraordinary accuracy of less then 0.1% (the performance comparable to the “Fixed Core” current ransducers.

  • Measurement of DC, AC and pulsed currents in the range of 100A – 10kA
  • Frequency bandwidth from DC to 3kHz
  • Clamp-on for easy installation, without interrupting of the primary circuit
  • Closed loop current transducer using the Hall effect
  • Superior total accuracy <0.1%
  • Excellent linearity
  • High immunity to external interference

Add to Inquiry

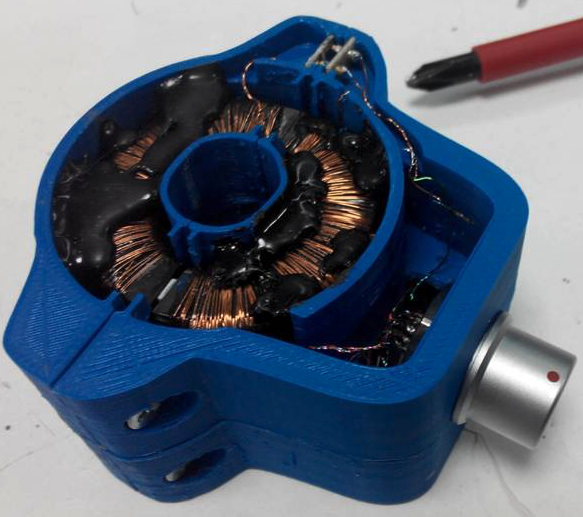

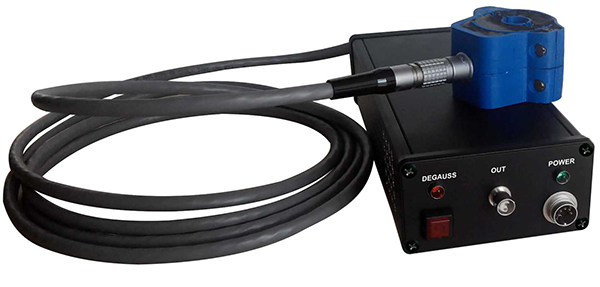

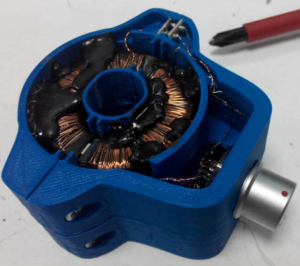

The CTH is the current transducer series for measurement of DC, AC and pulsed currents, with galvanic isolation between the primary circuit and the secondary circuit. The CTH Series current transducers consist of two parts: transducer head and transducer electronics, connected with multi-paired shielded cable, up to 10m length.
