Helmholtz Coils HHROT-1

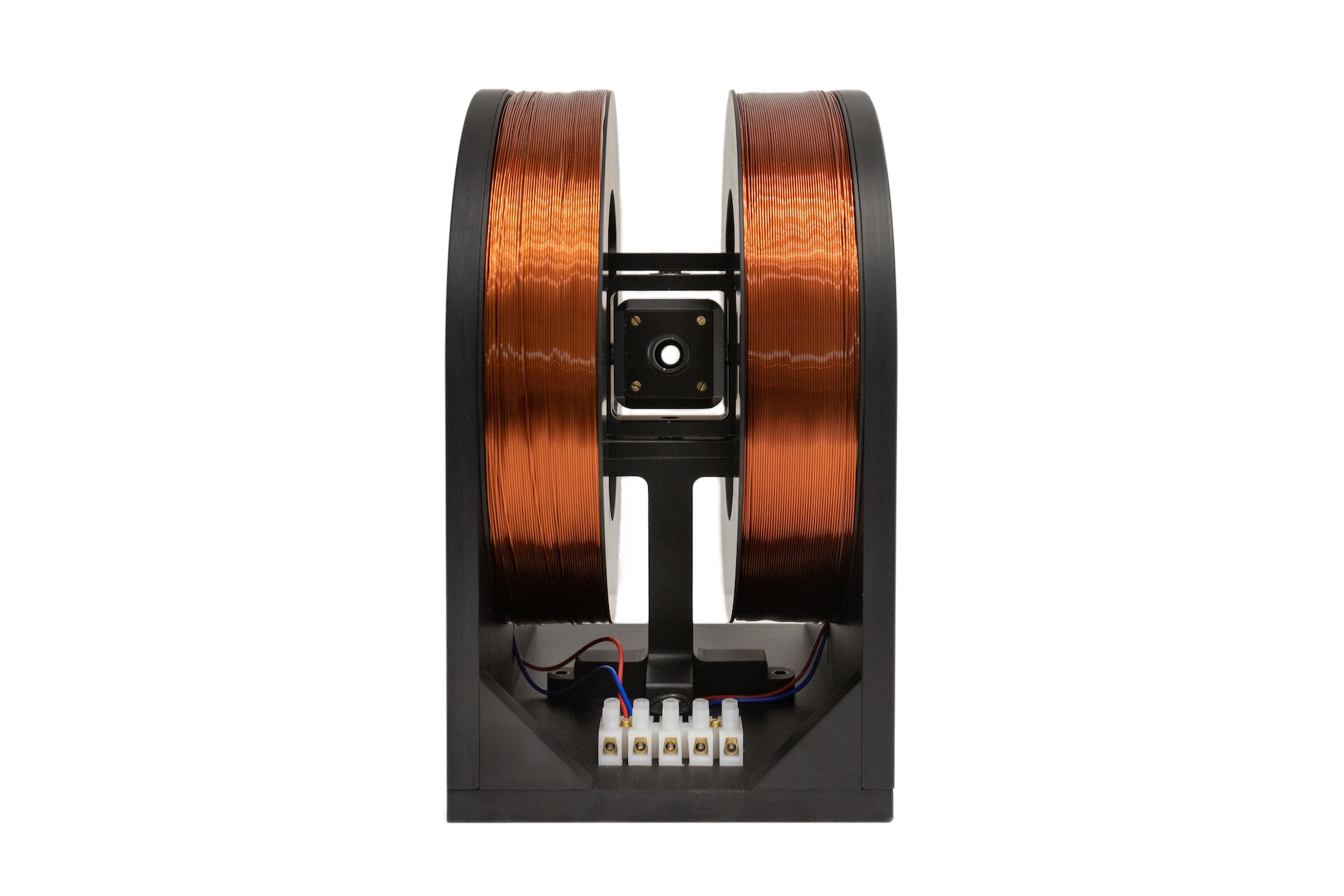

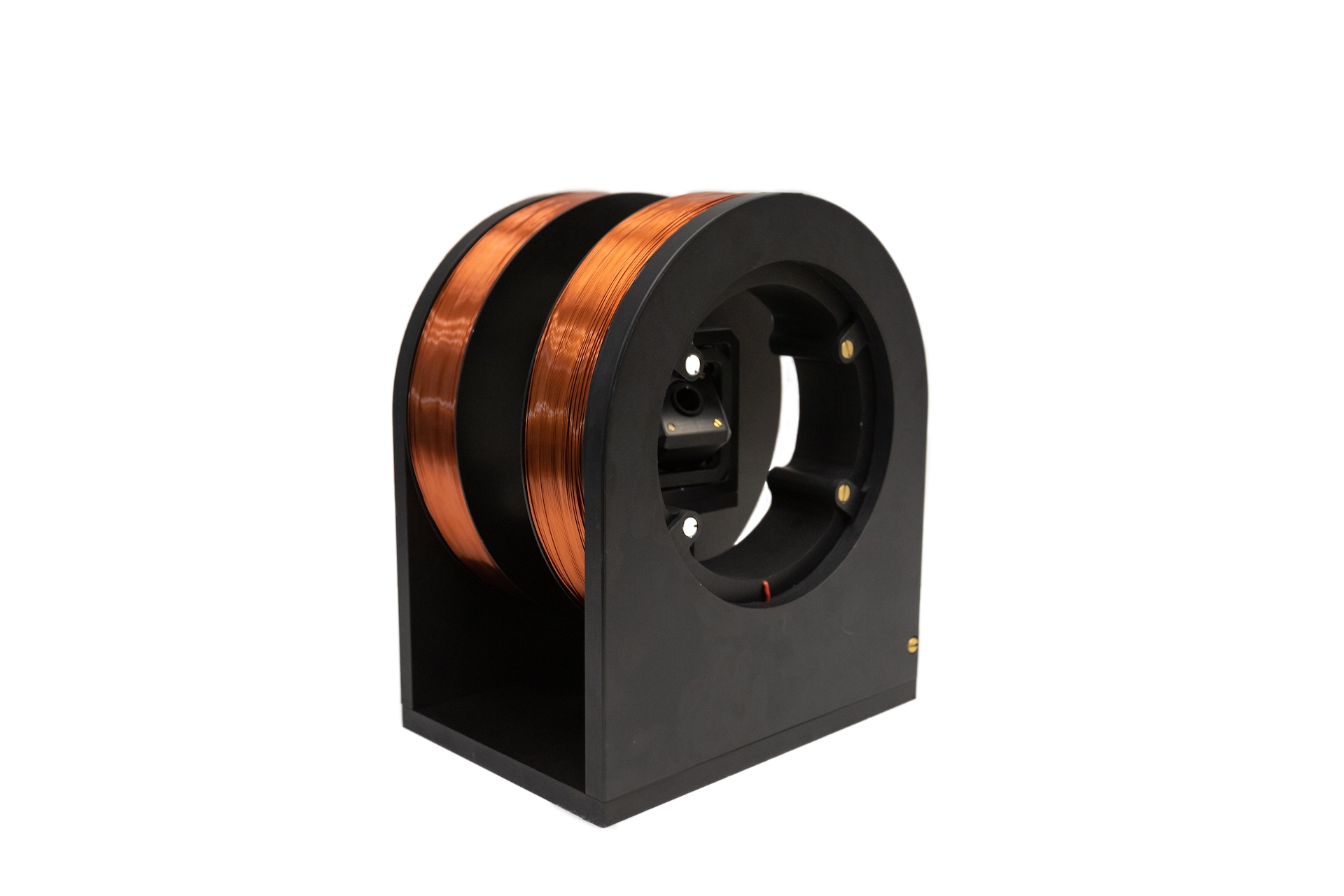

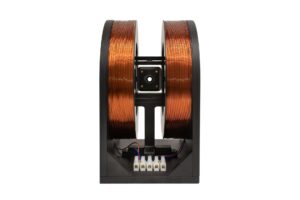

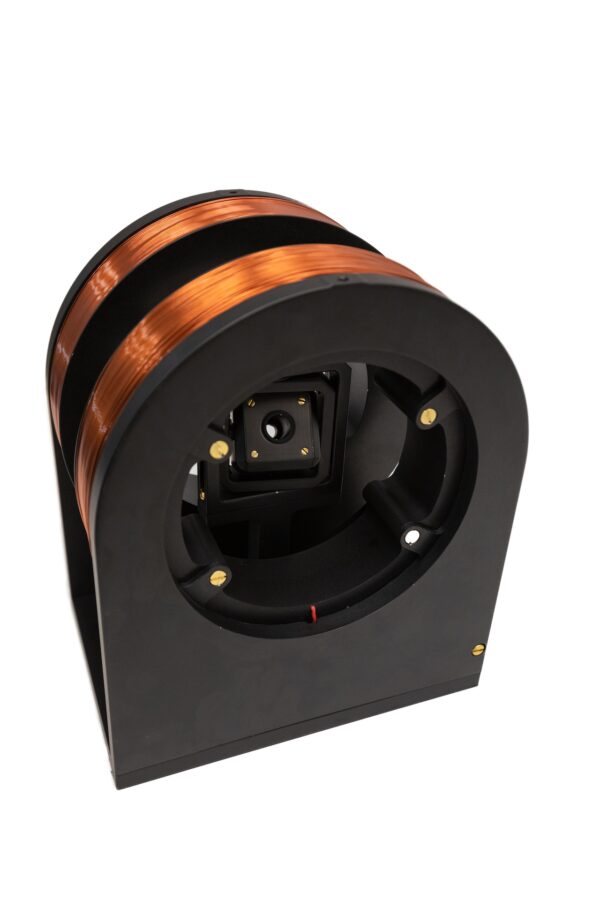

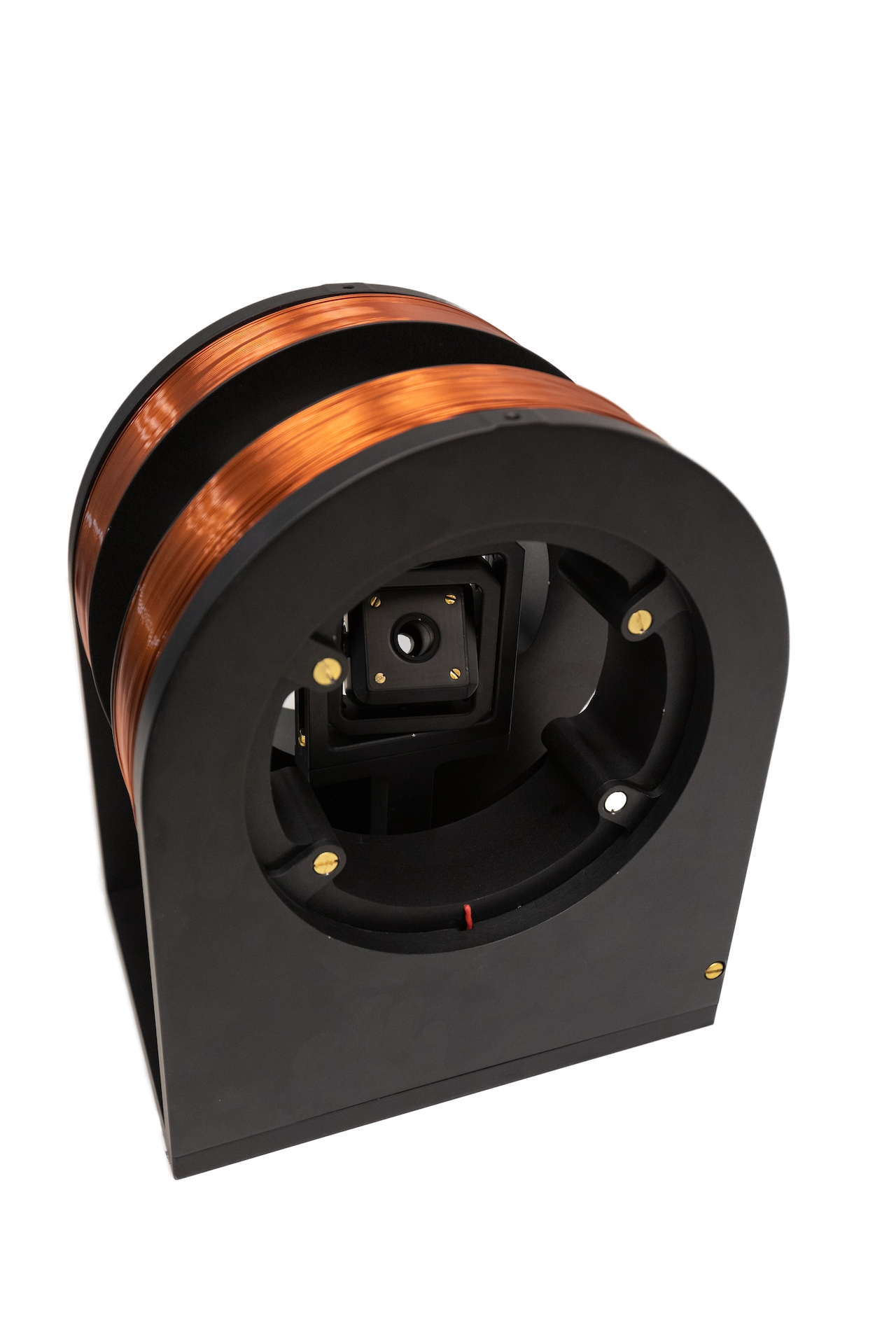

The SENIS Model HHROT-1 Helmholtz Coils is a single axis coil pair arranged in Helmholtz geometry to give a relatively large volume of high uniformity magnetic field. SENIS can assemble customized geometries and sizes of 1D and 3D Helmholtz Coils.

Add to Inquiry

KEY FEATURES

  • Magnetic field up to 20mT
  • High magnetic field uniformity: better than 4×10-4 over a 20mm sphere
  • Compact, with the weight of 32kg
  • Dimensions: 199 x 280 x 337 mm
  • Inner diameter 176mm
  • Possibility to rotate a magnetic sensor within the Helmholtz coils in all three angles (tilt, roll, pitch)
