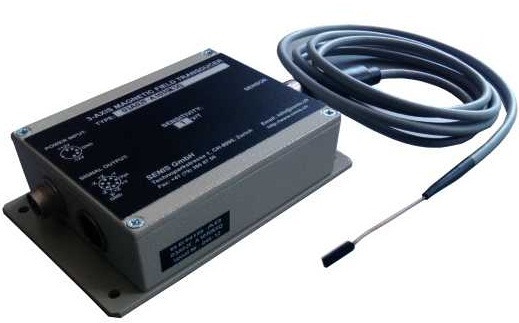

F1A Magnetic Transducers with Fully Integrated 1-axis (Y) Hall Probe

  • Very high frequency bandwidth
  • High disturbance immunity
  • Suitable for probes of type A, C, K, H and L

Add to Inquiry

KEY FEATURES

  • Fully integrated CMOS 1-axis (By) Hall Probe
  • Very high spatial resolution (0.40 x 0.01 x 0.04mm3)
  • Virtually no planar Hall Effect
  • High frequency bandwidth (from DC up to 75kHz)
  • High disturbance immunity
  • Negligible inductive loops on the Probe
  • Integrated temperature sensor on the probe for temperature compensation



TYPICAL APPLICATIONS

  • Characterization and quality control of permanent magnets
  • Development of magnet systems
  • Mapping magnetic field
  • Quality control and monitoring of magnet systems (generators, motors, etc.)
  • Application in laboratories and in production lines
