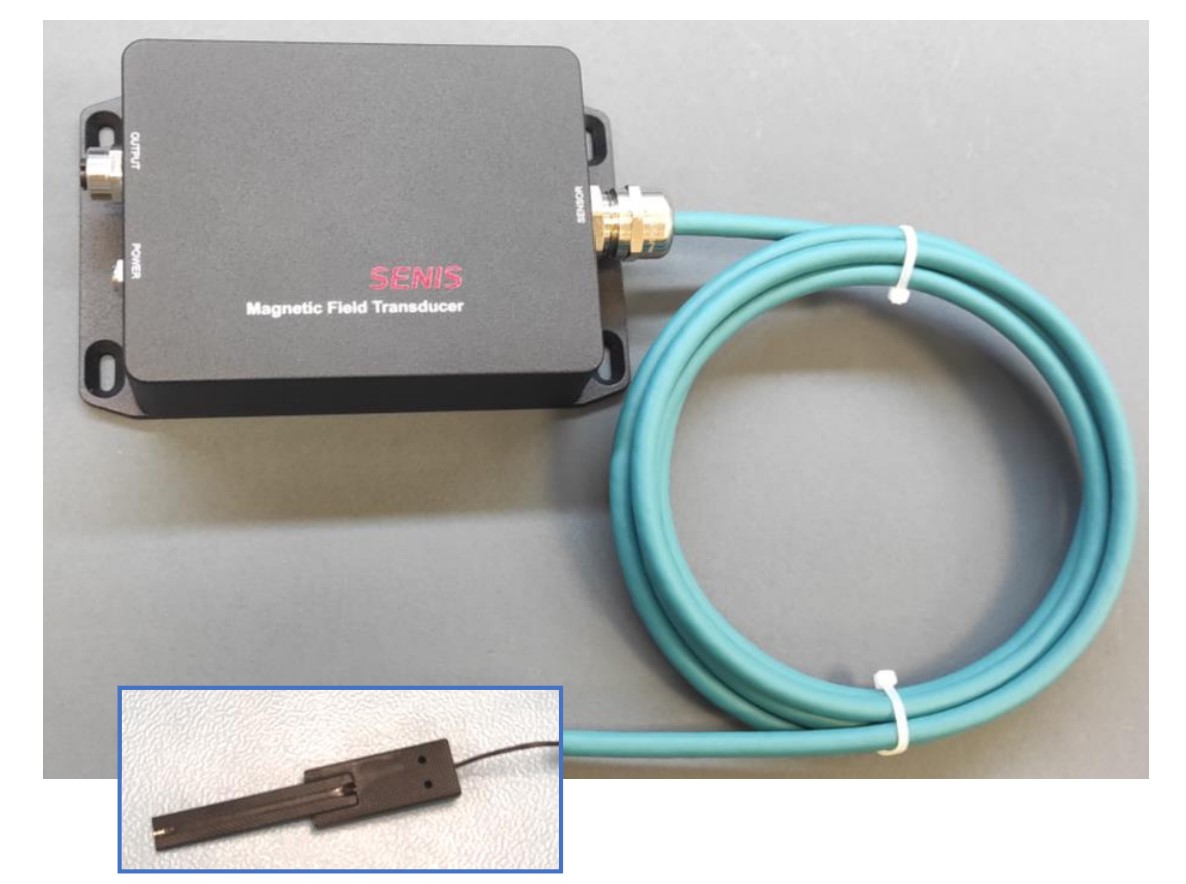

F3B Magnetic Transducer with Fully Integrated 1-/ 2-/ 3-axis Hall Probe

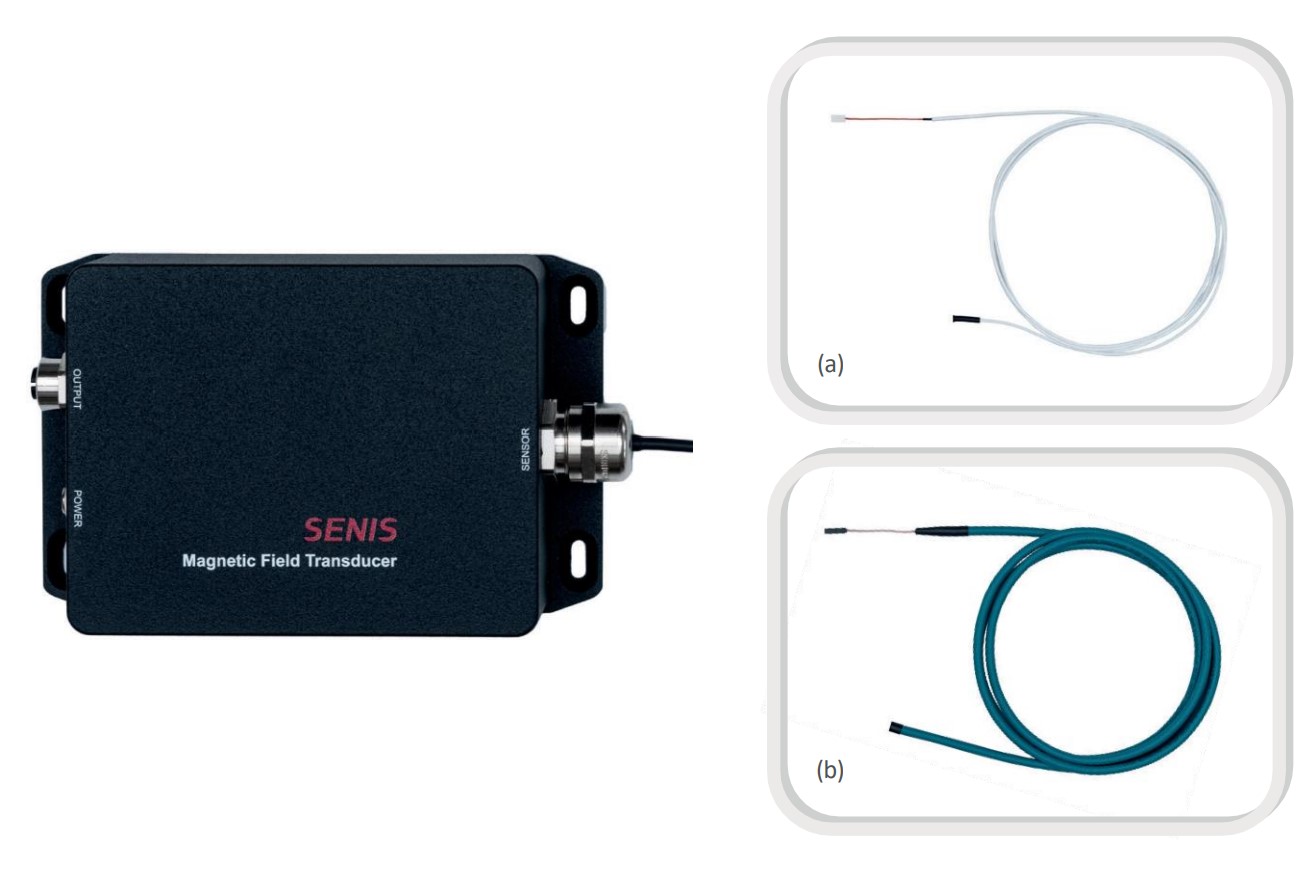

  • Interchangeable Hall Probes (the same magnetic and temperature range)
  • Very high spatial resolution
  • High frequency bandwidth
  • High disturbance immunity
  • Very high orthogonality accuracy

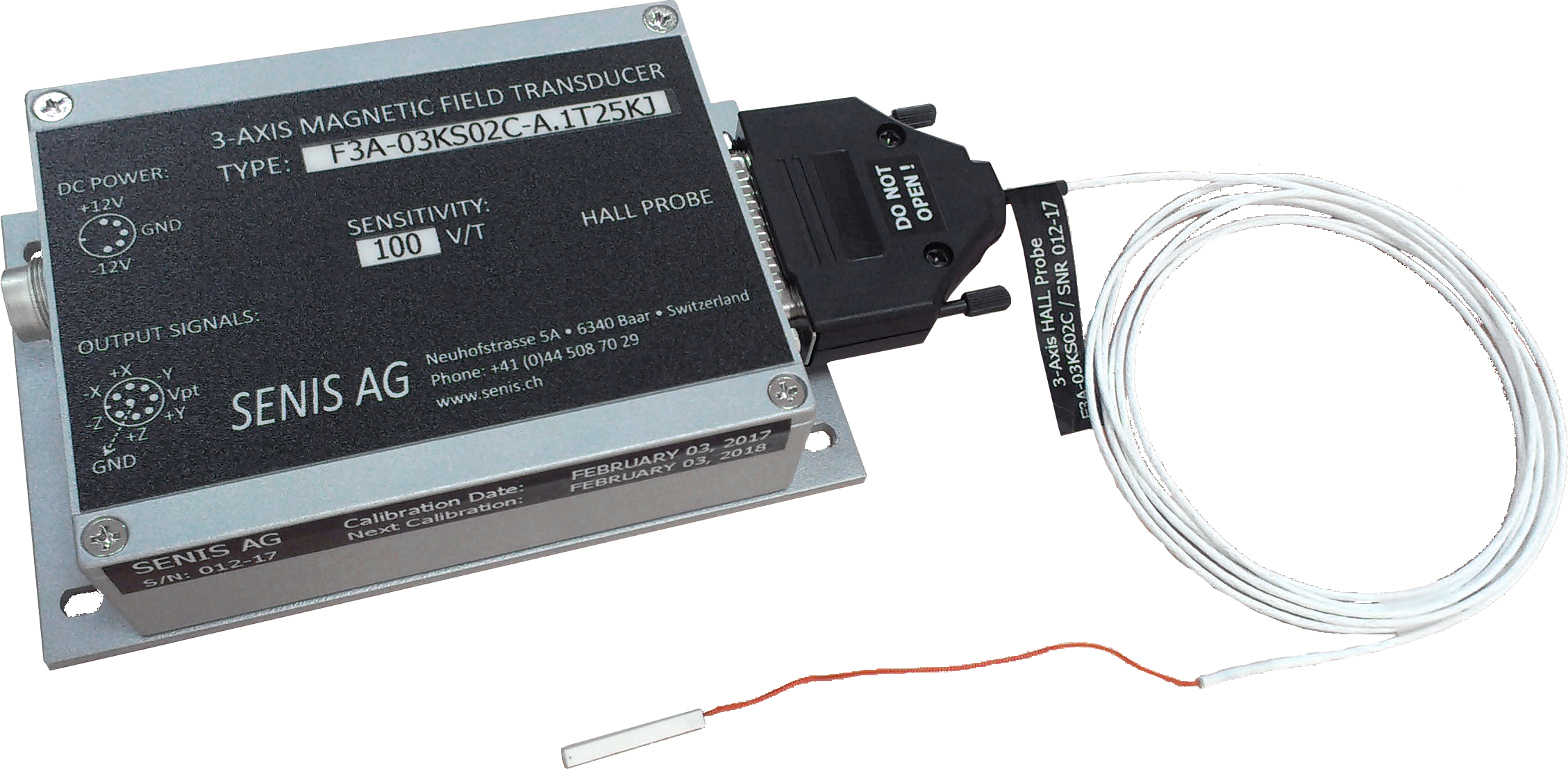

  • Suitable for probes of type A, C, K, H, L and sliding Hall probes

Add to Inquiry


  • Fully integrated CMOS 3-axis (Bx, By, Bz) Hall Probe, of which one, two, or three channels are used
  • Very high spatial resolution (By: 0.03 x 0.005 x 0.03mm3; Bx and Bz: 0.15 x 0.01 x 0.15 mm3)
  • High angular accuracy (orthogonality error less than 0.1°)
  • Virtually no planar Hall Effect
  • High frequency bandwidth (from DC up to 25kHz)
  • High disturbance immunity
  • Negligible inductive loops on the Probe
  • Integrated temperature sensor on the probe for temperature compensation



  • Characterization and quality control of permanent magnets
  • Development of magnet systems
  • Mapping magnetic field
  • Quality control and monitoring of magnet systems (generators, motors, etc.)
  • Application in laboratories and in production lines
