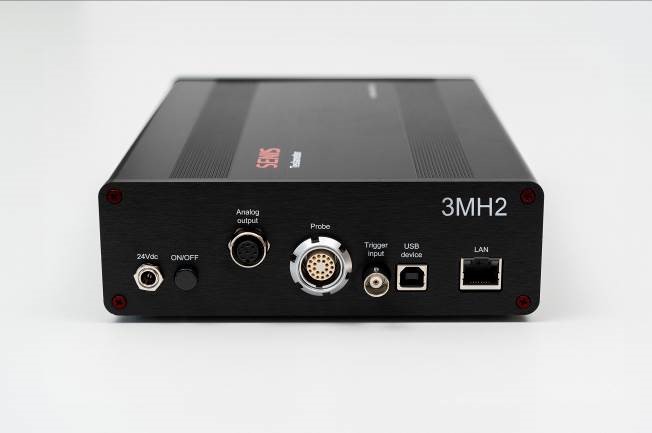

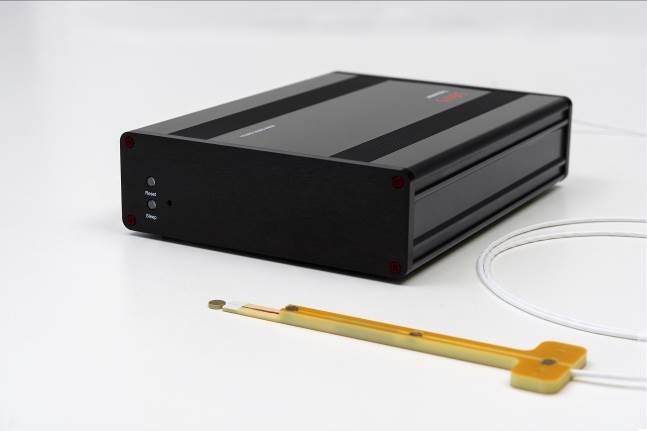

3MH2 Digital Transducer – New!

▪ High measurement DC accuracy: < 0.1% (1’000ppm)
▪ Very good stability of the digital readings
▪ Very high spatial resolution: FSV of the applied 3D Hall IC in the C Probe Type is only 0.10 x 0.01 x 0.10 mm3
▪ Probe interchangeability is ensured: Calibration data of each Hall probe are stored in an integrated EEPROM
▪ High temperature stability: < 100ppm/°C
▪ Very high magnetic DC resolution: better than 1ppm @ ±2T range
▪ Up to 4 (four) selectable magnetic field ranges: 100mT, 500mT, 2T, 20T (calibrated up to 9T)
▪ USB2.0 serial communication and LAN
▪ Triggers Internal and External – Single shot, Manual and Continuous
▪ 24-bit A/D Converter
