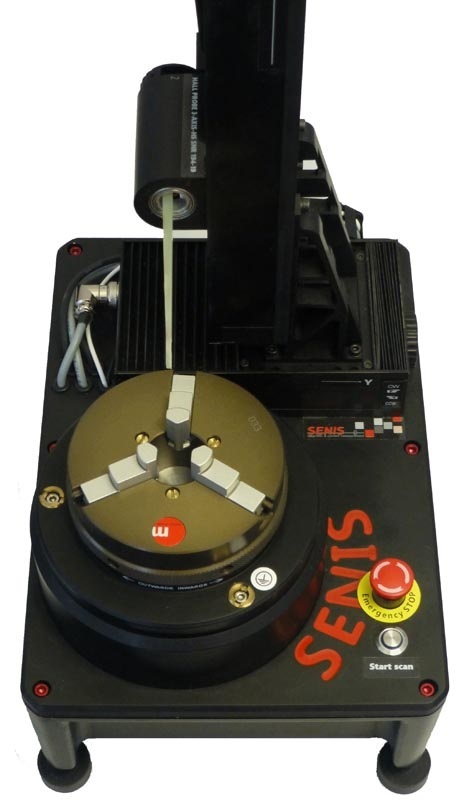

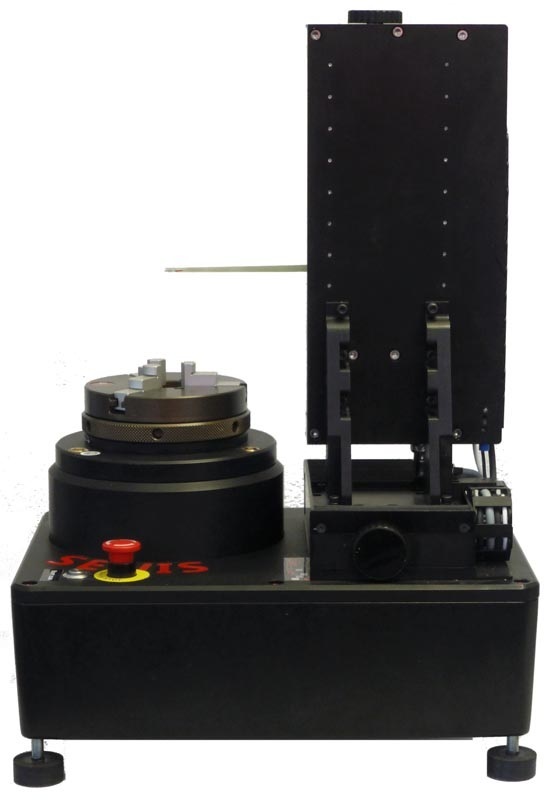

Compact 3D Magnetic Field Mapper MMS-2A-ROT

  • 3D magnetic field mapping of cylindrical magnets – rotors, disk, ring and segment magnets

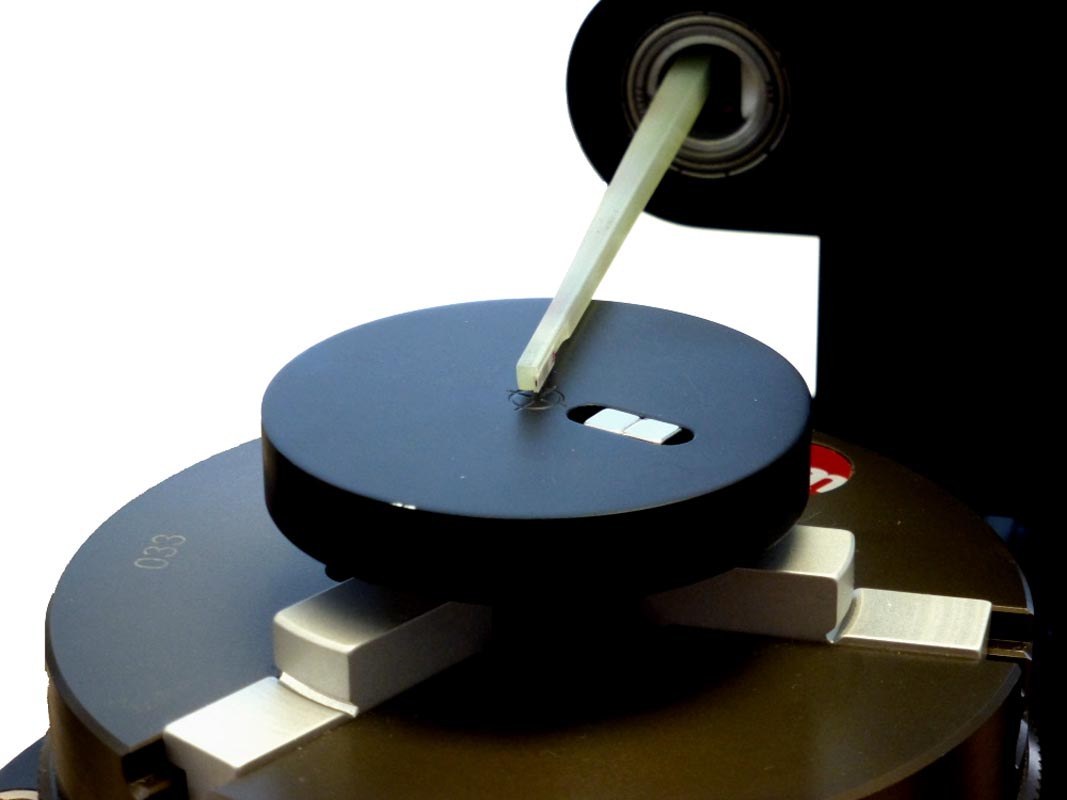

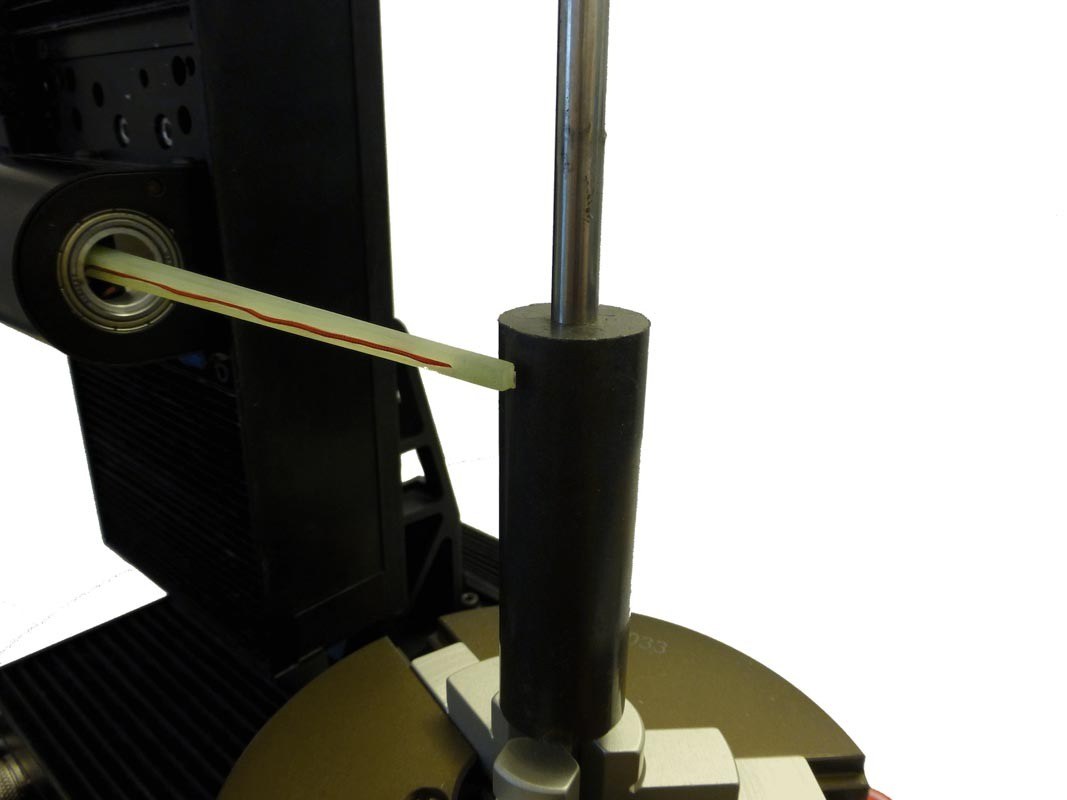

  • 3-axis Hall probe for in-contact measurements – 0.5mm distance of sensitive volume to the magnet
  • Intuitive Mapper software for measurement data acquisition, visualization and analysis
  • Magnetic field measurement accuracy: 1%
  • Selectable measurement ranges: 100mT, 500mT, 2T
  • Probe positioning repeatability: ±20μm / ±0.05°
  • Scanning volume: 155 mm (Z-axis), 55 mm (radial)
  • Compact and light
