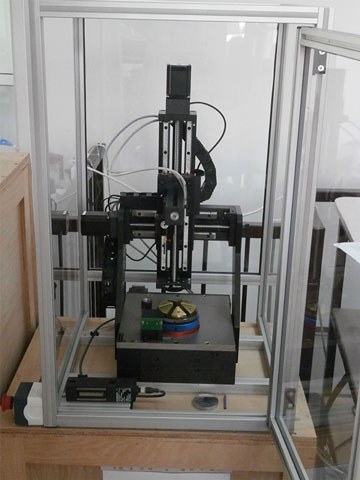

All-in-One Standard Magnetic Field Mapper MMS-1A-RS

• 3-axis Hall probe for 3D magnetic field measurement
• Magnetic field measurement accuracy: 0.1%
• Magnetic field resolution: standard: 40uT / option: 2uT
• Selectable measurement ranges: 50mT – 2T
• Probe positioning repeatability: ±5.0μm / ±0.025°
• In-situ, automatic calibration

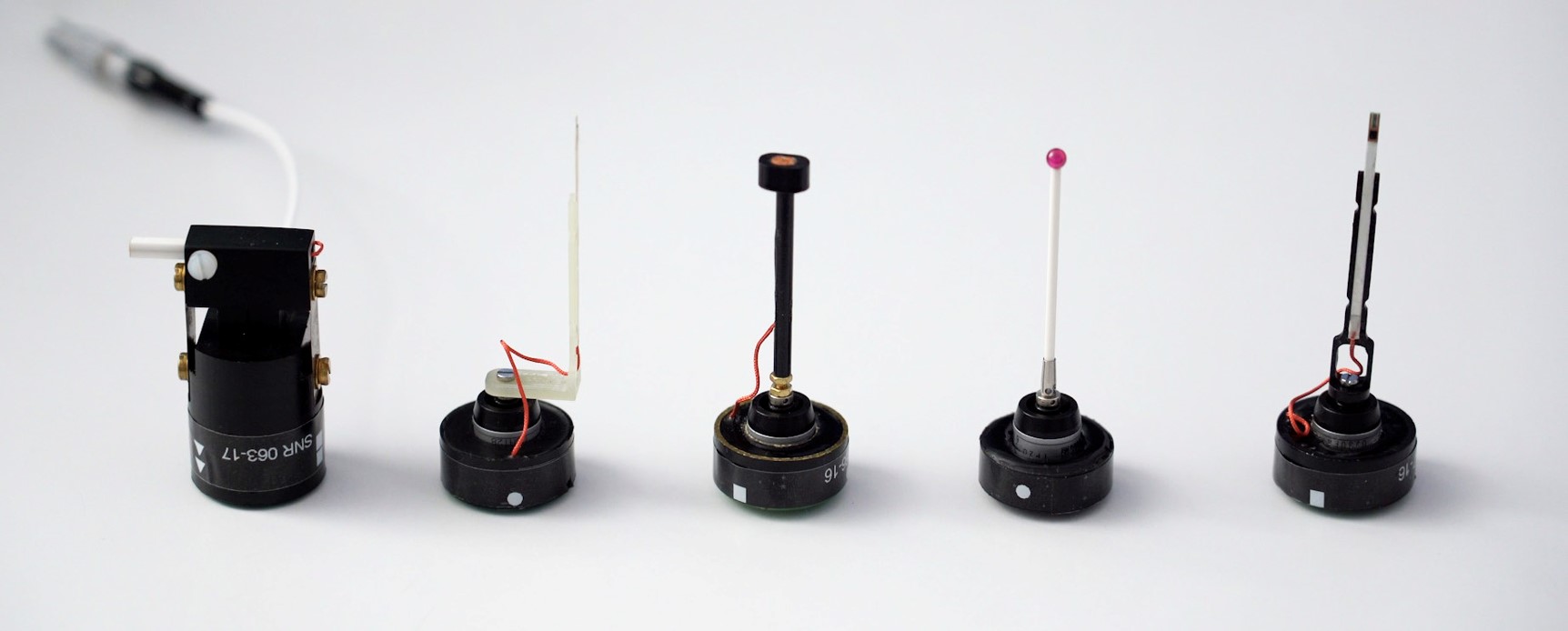

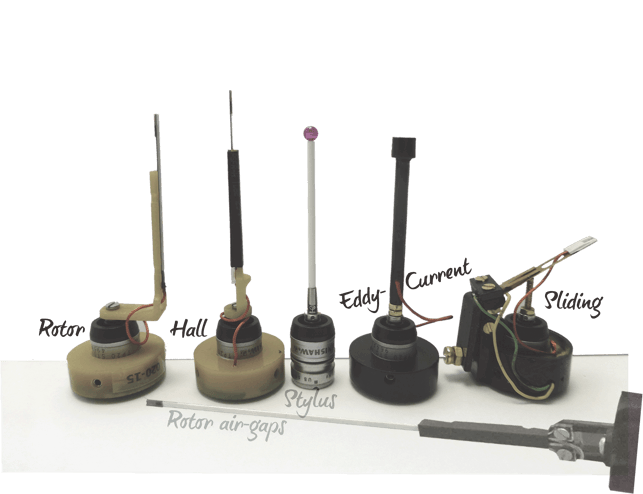

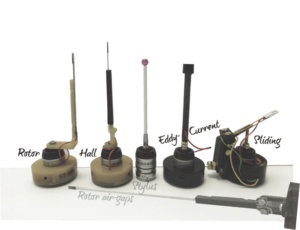

• Easy probe interchangeability (Hall, AMR, Eddy-Current…)
• Customizable, user-friendly mapper software
• Scanning volume: 125 x 125 x 150 mm
• Sliding probes available
• Rotor Tests with SENIS Magnetic Field Mapper – YouTube
• Flat Coded Magnet Test with SENIS Magnetic Field Mapper – YouTube
• Multipole Ring Magnet – measured and analysed with the SENIS Magnetic Field Mapper – YouTube

Application example: How to Measure the Magnetic Field Distribution of a PM Rotor
