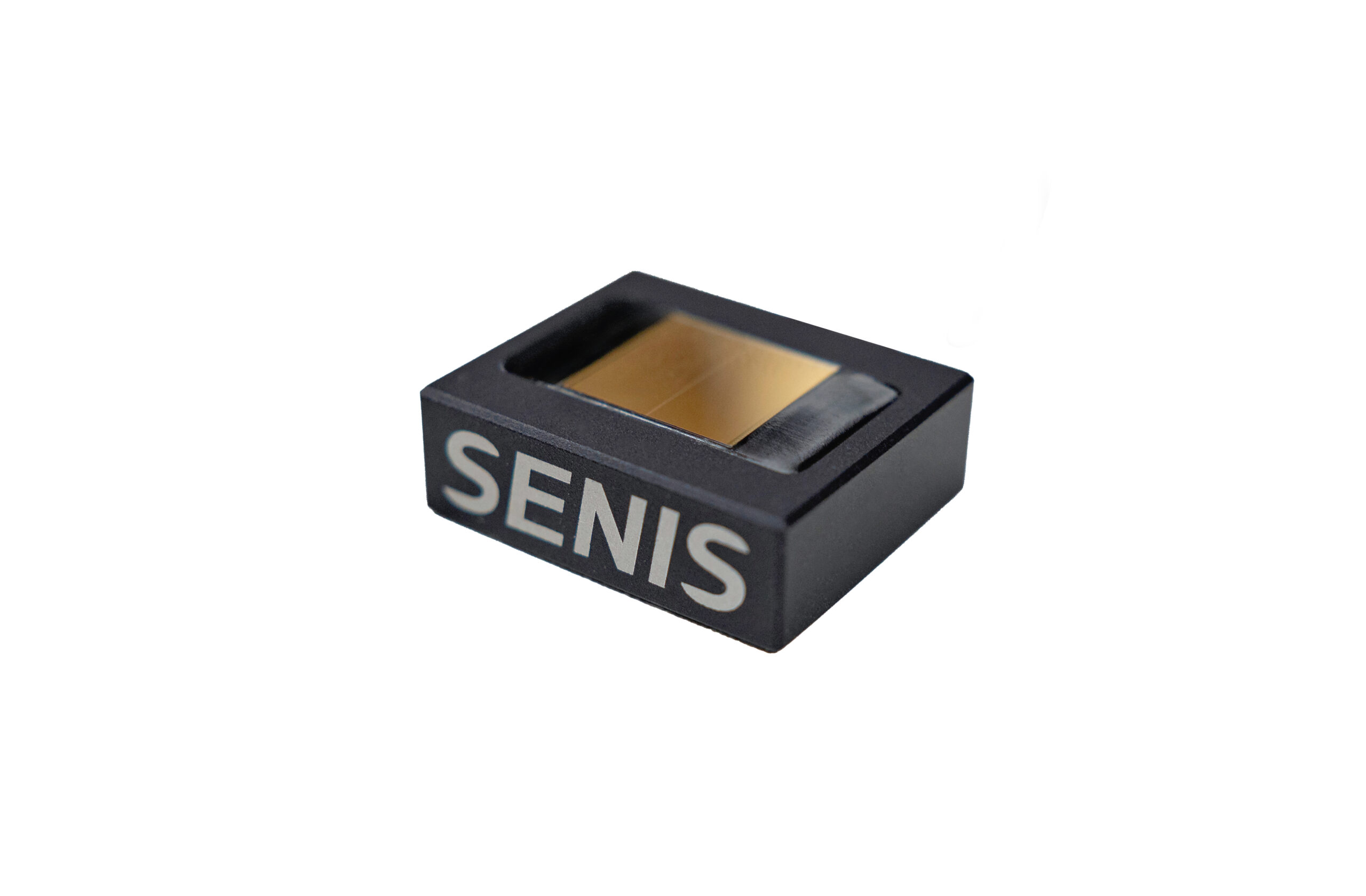

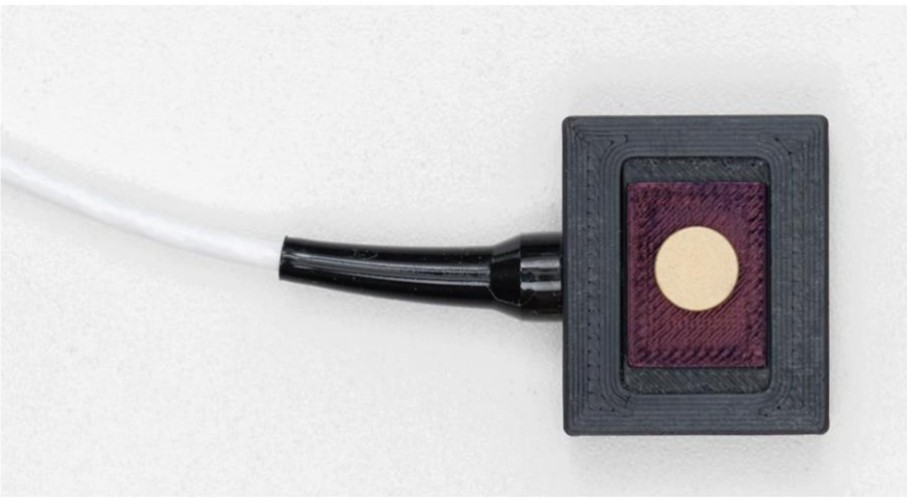

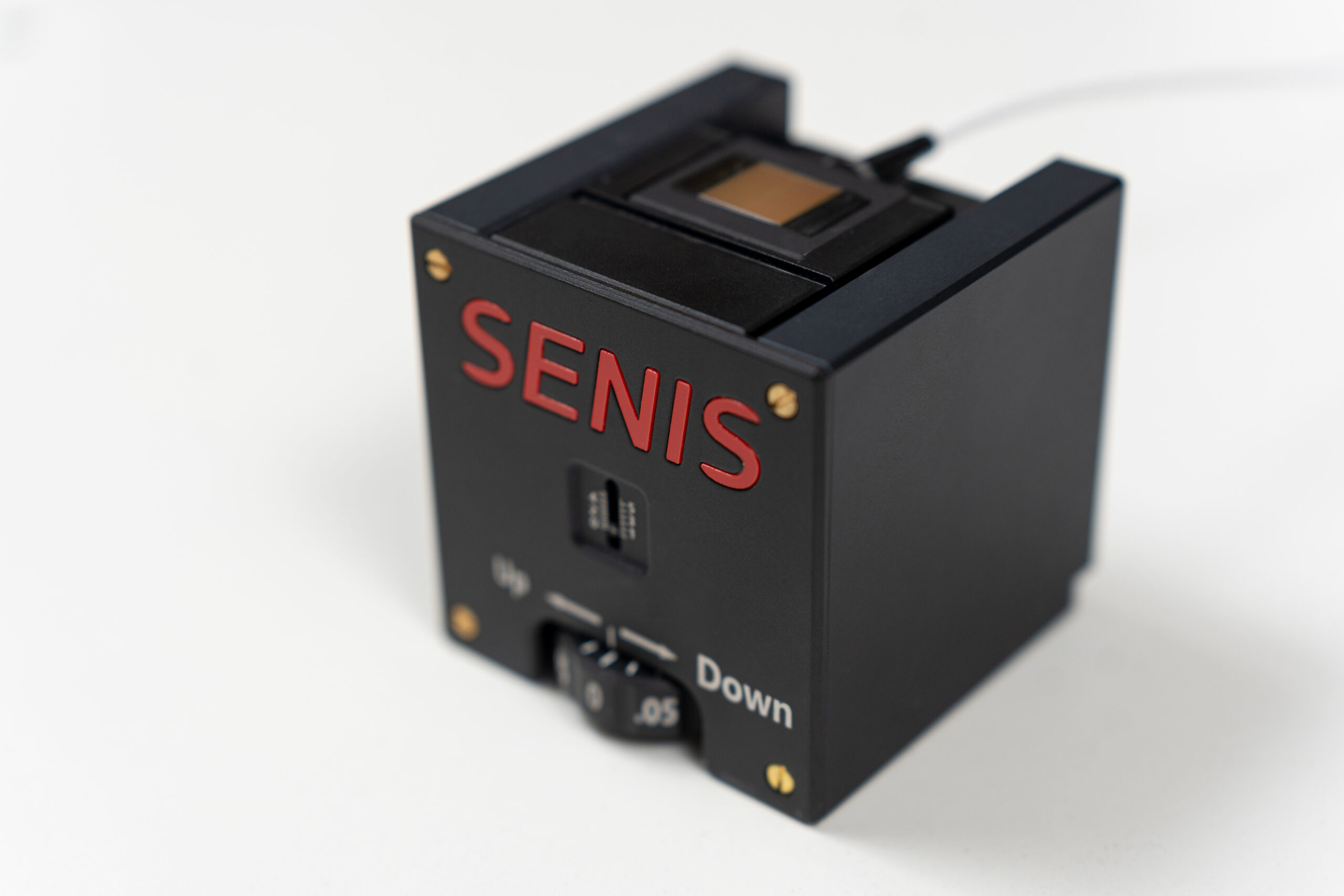

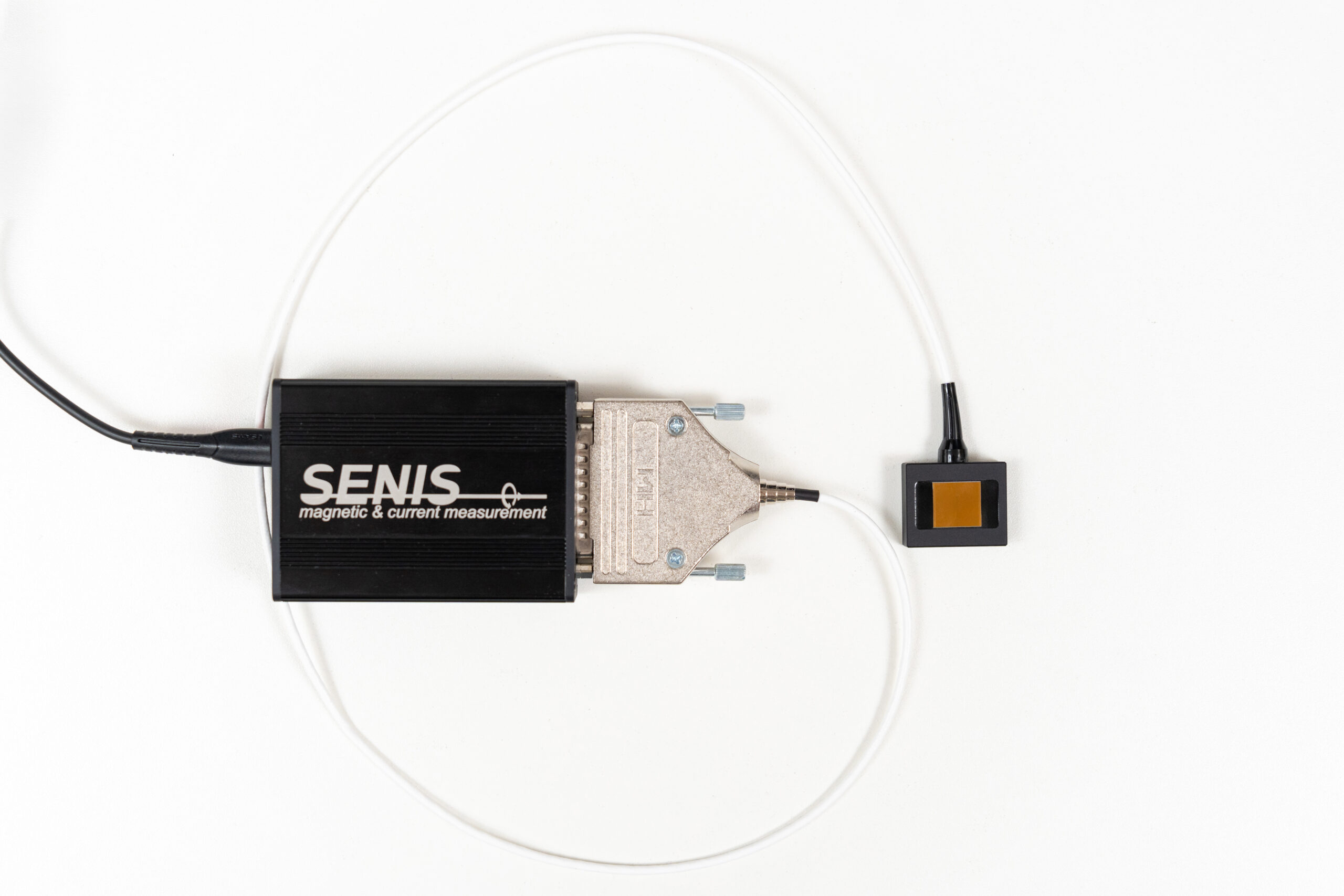

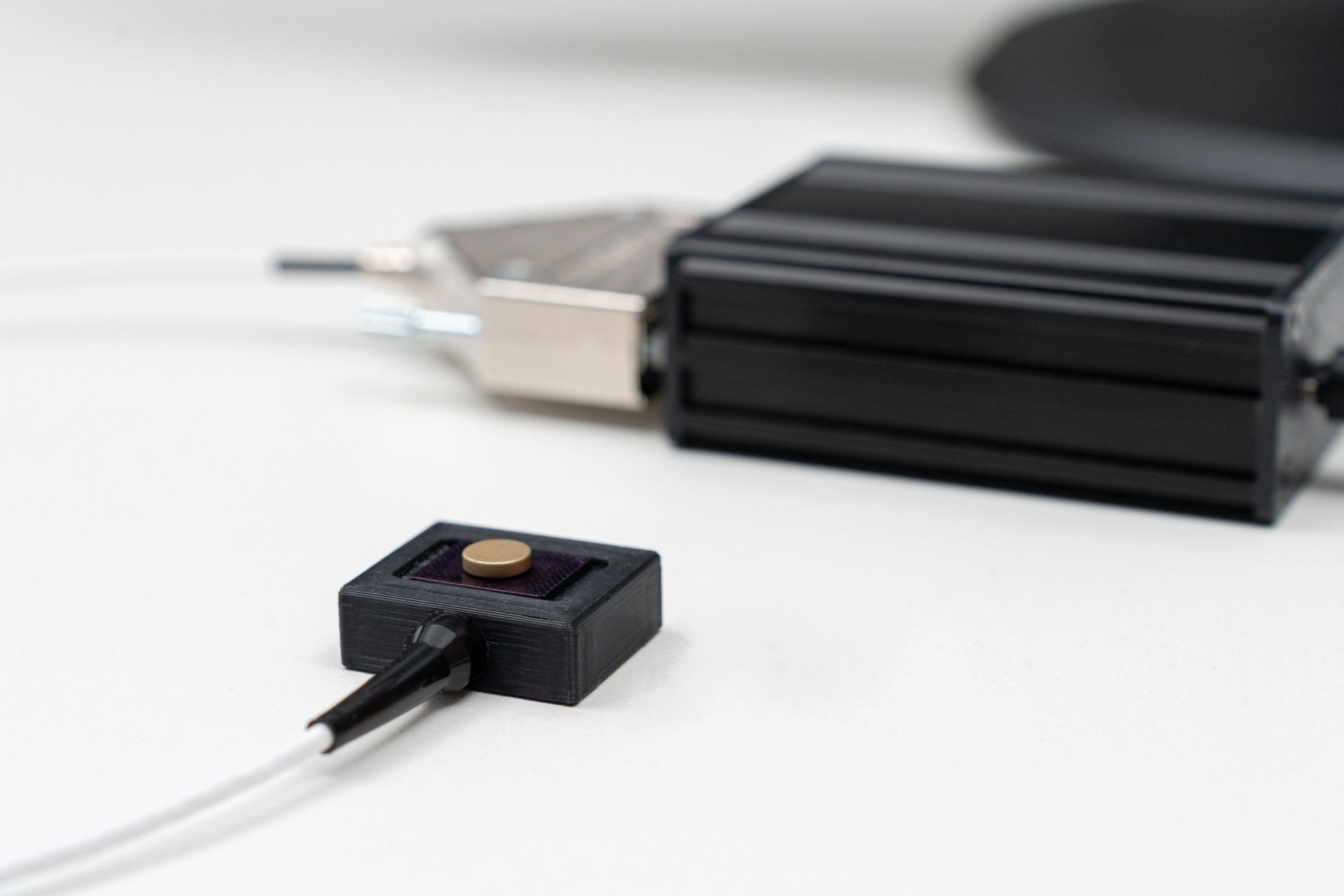

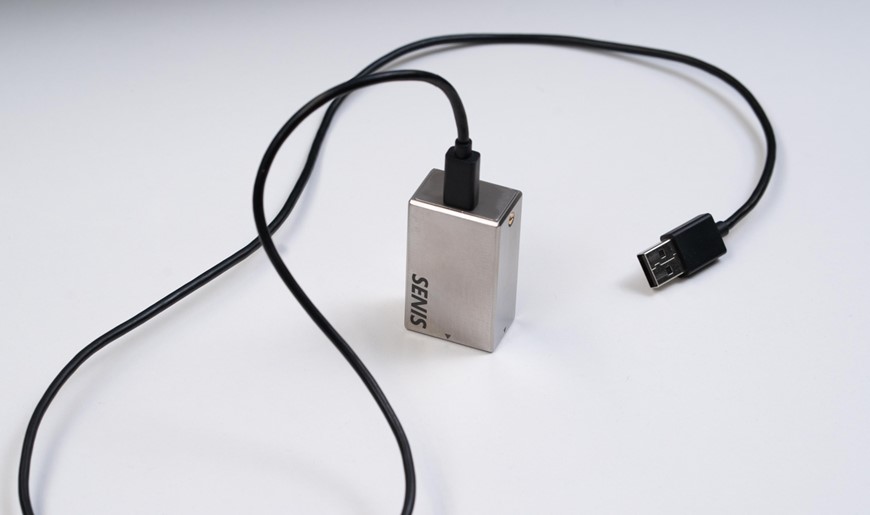

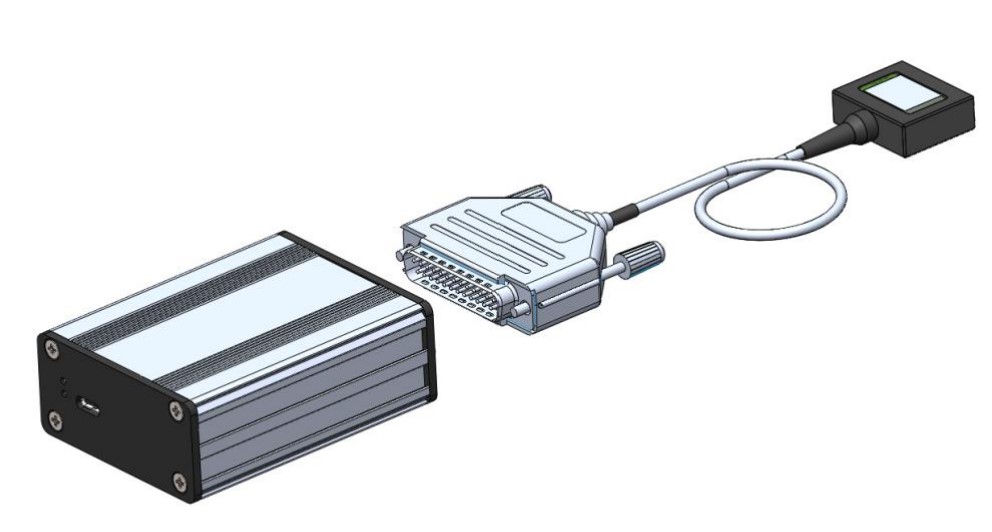

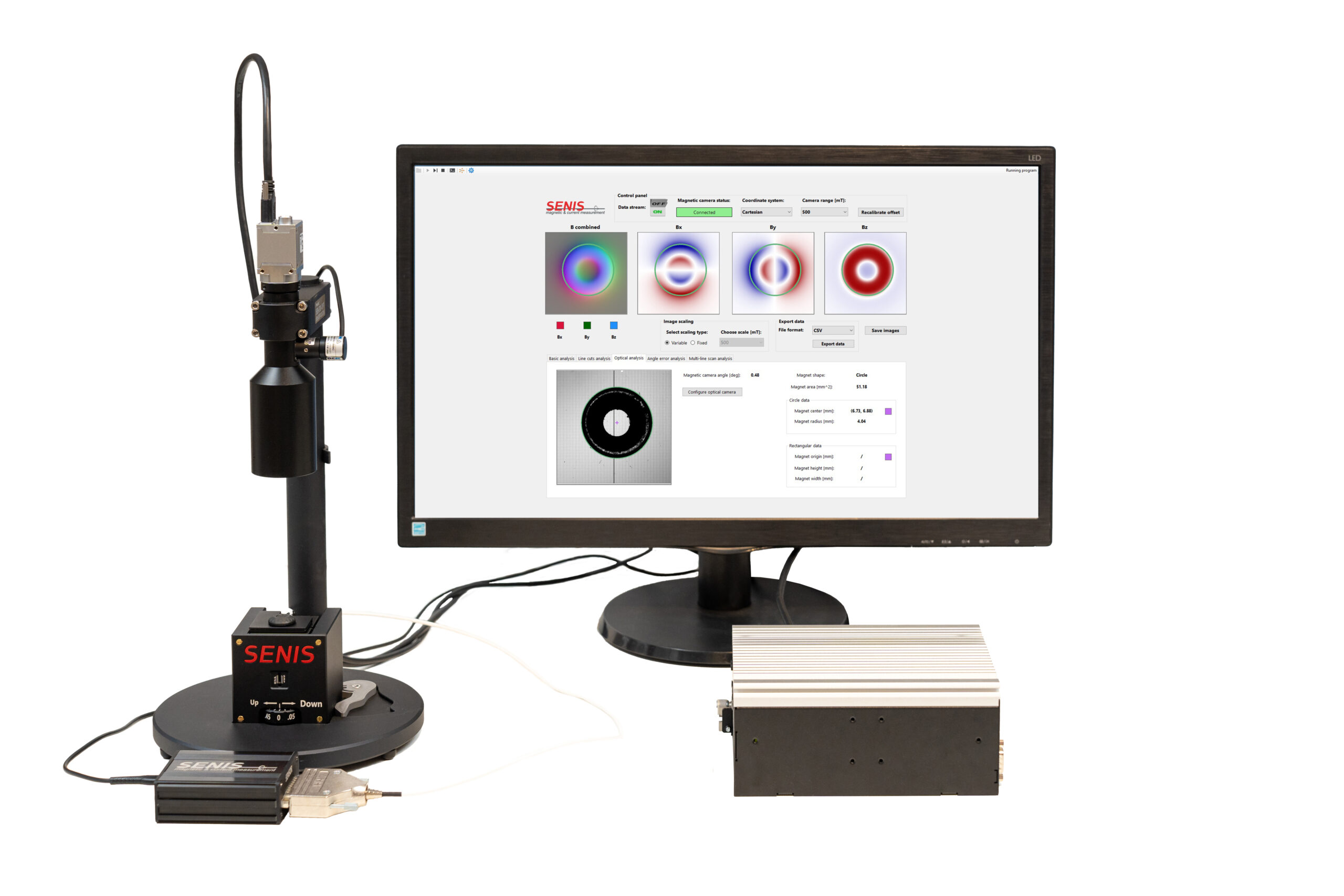

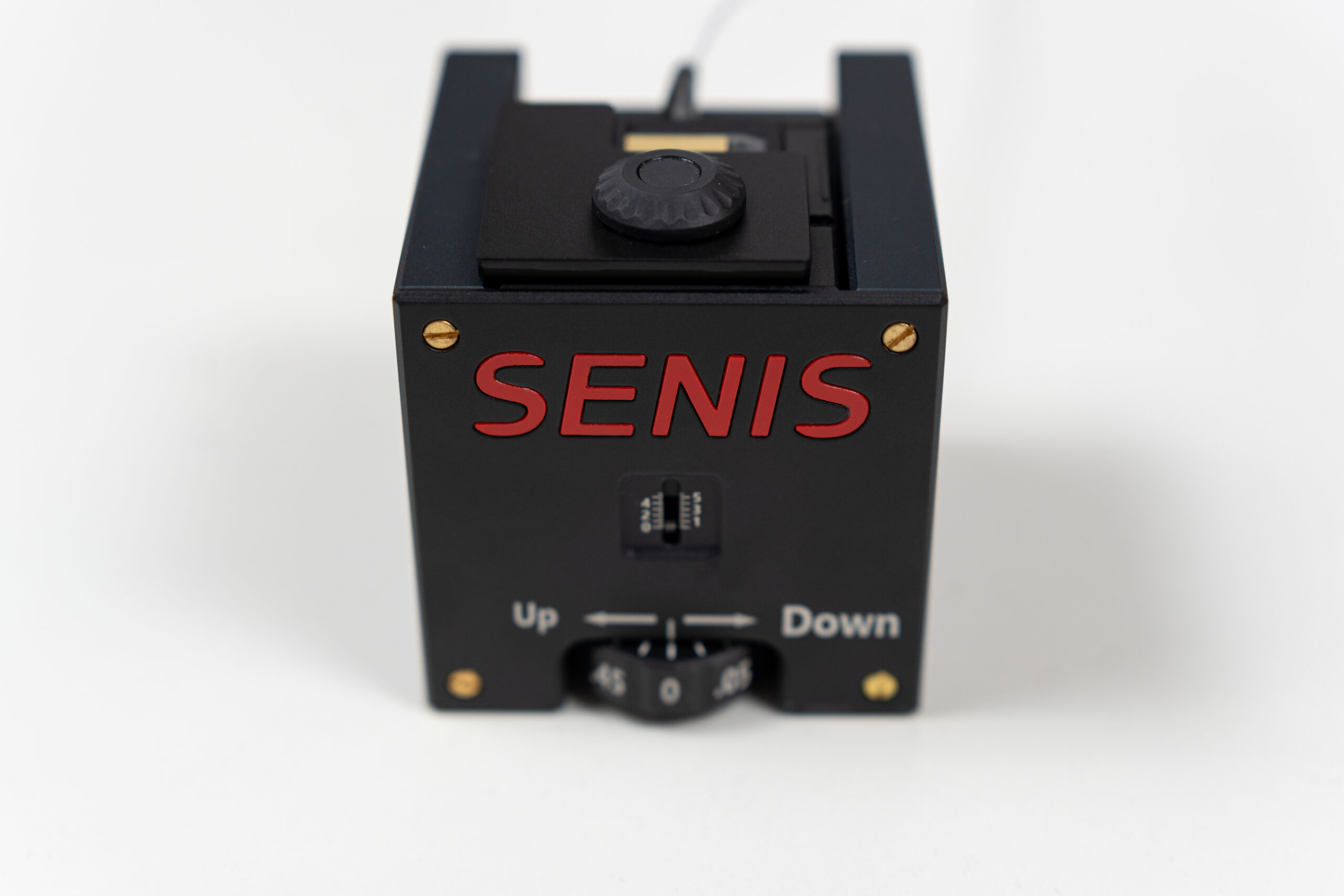

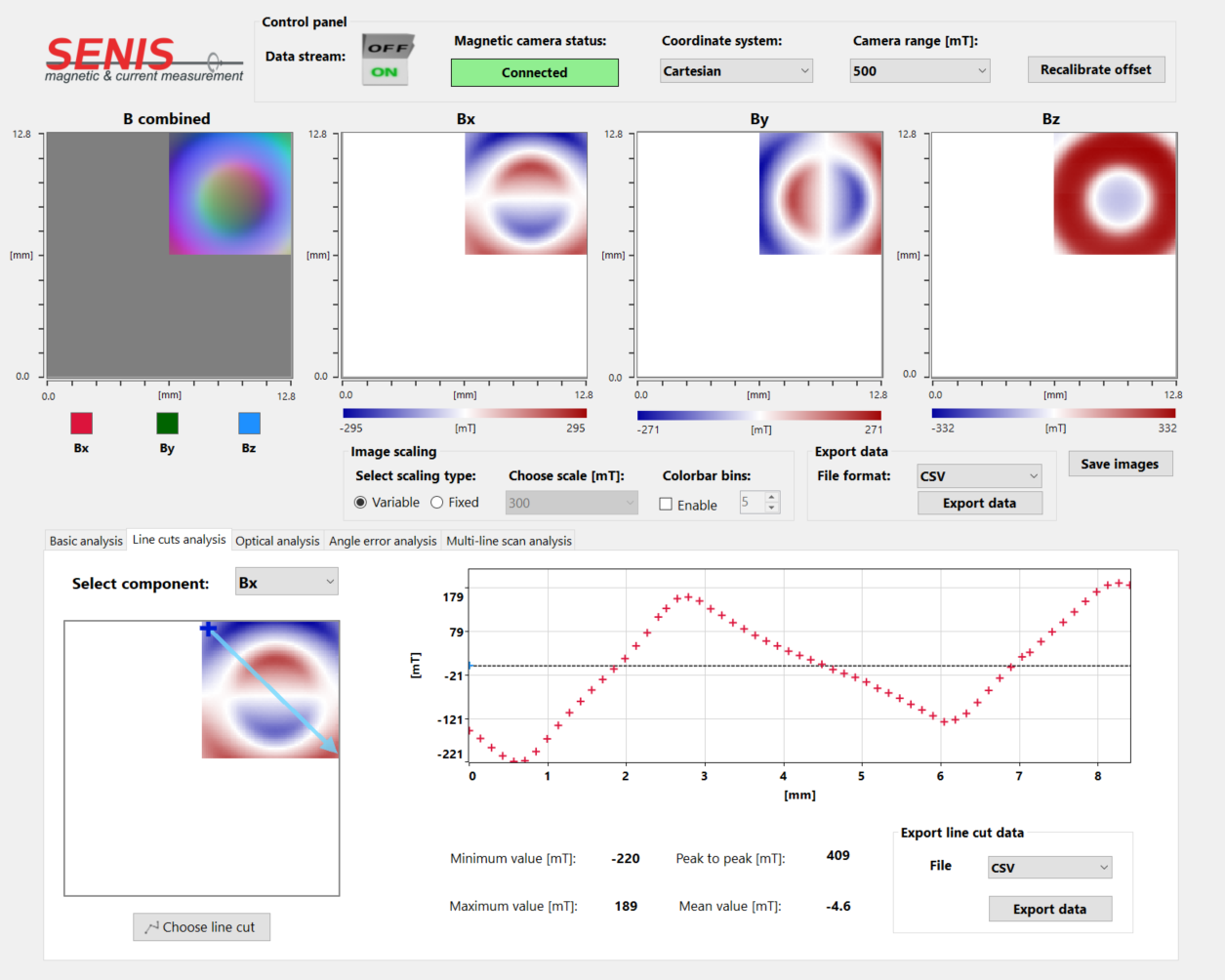

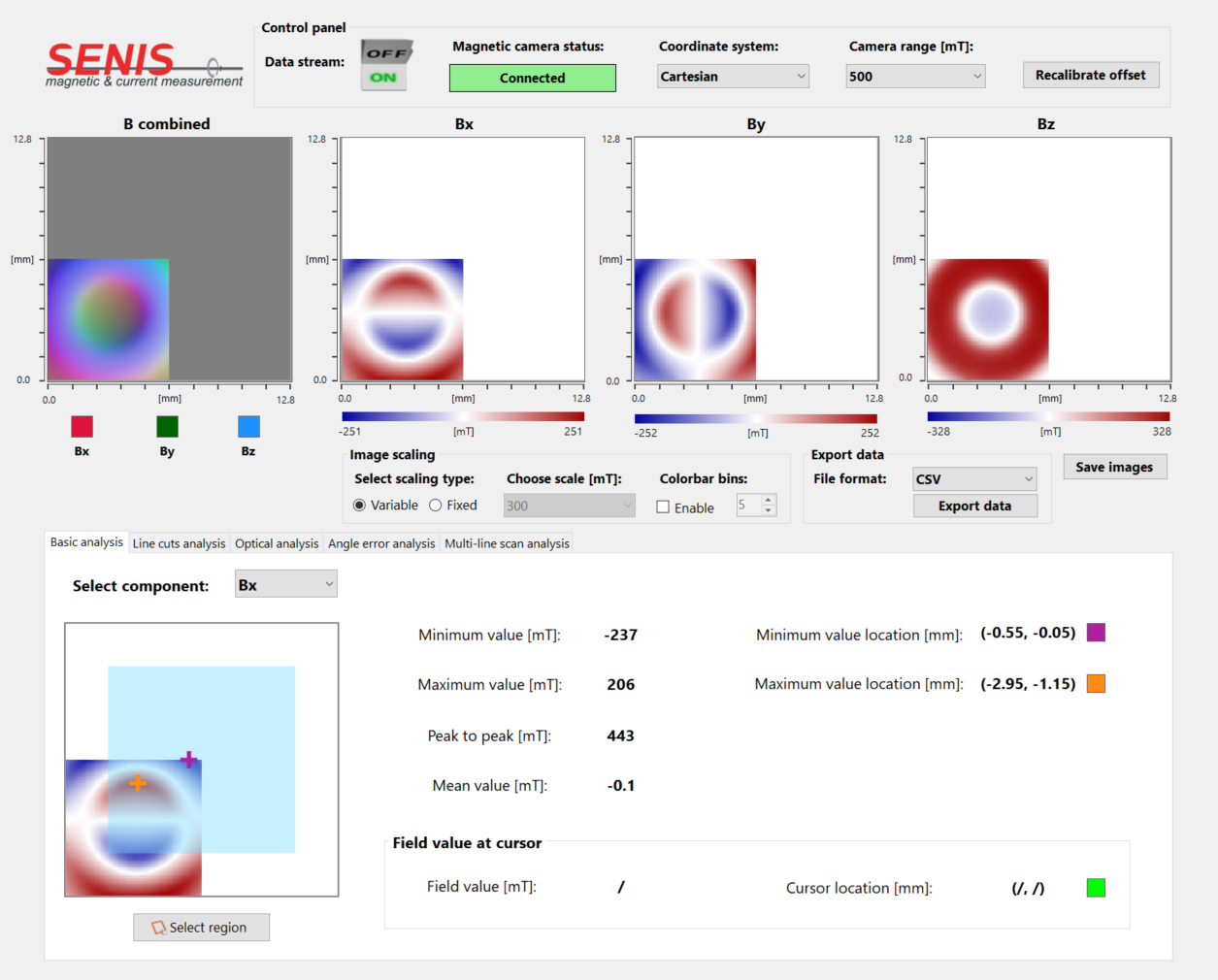

SENCAM – MAGNETIC FIELD CAMERA SEN-3D-CAM
- Fast, true and precise 3-axis magnetic field camera

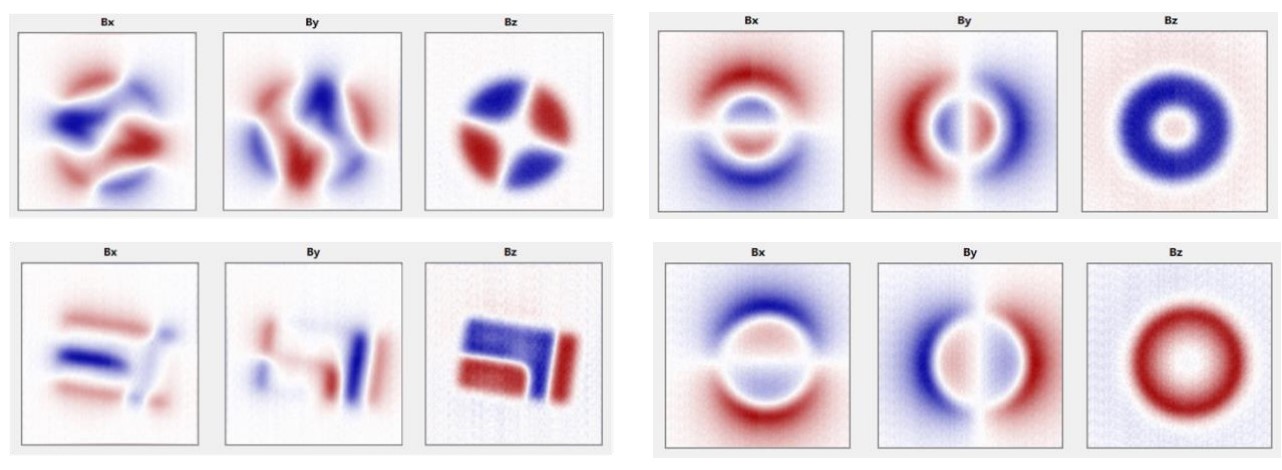

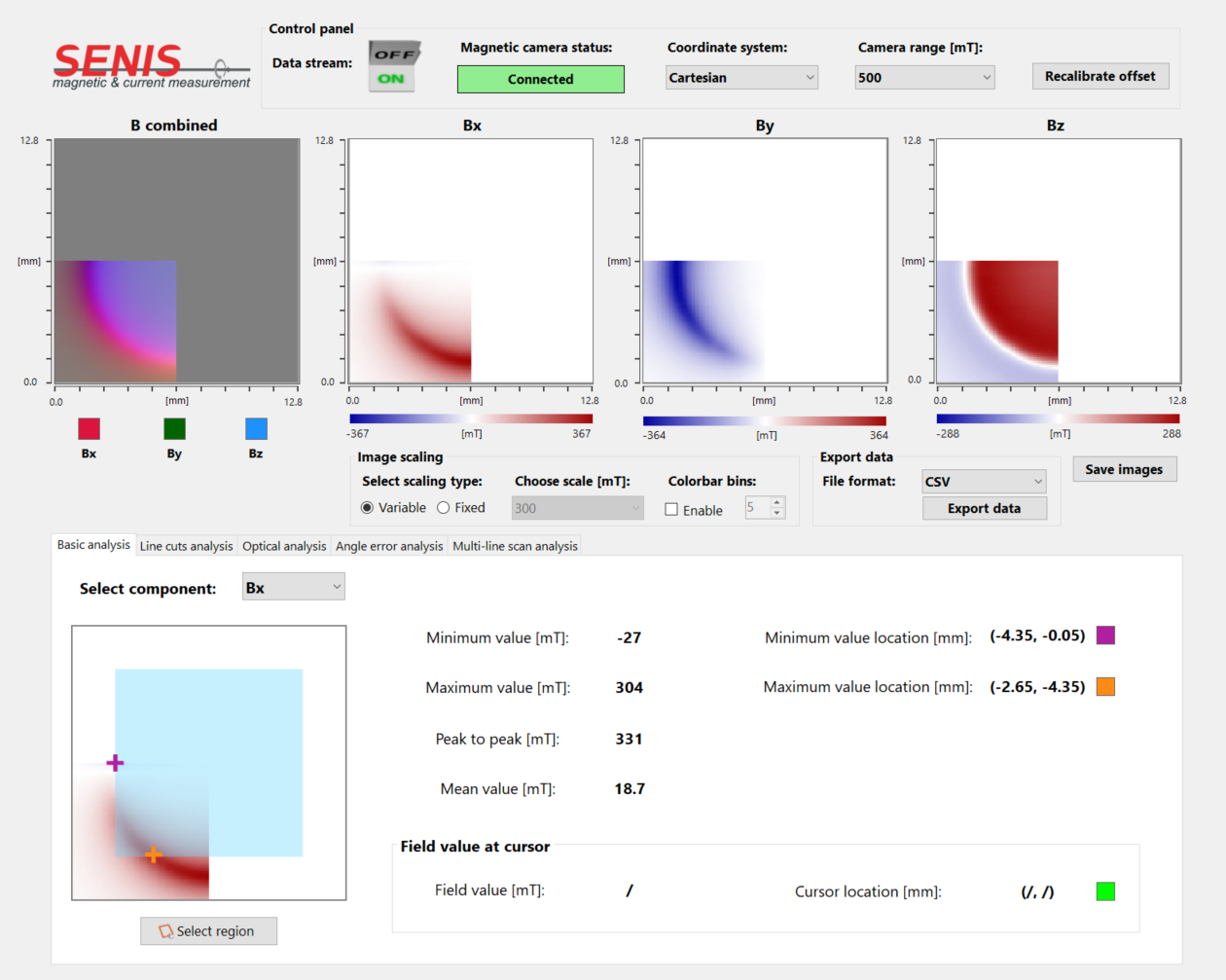

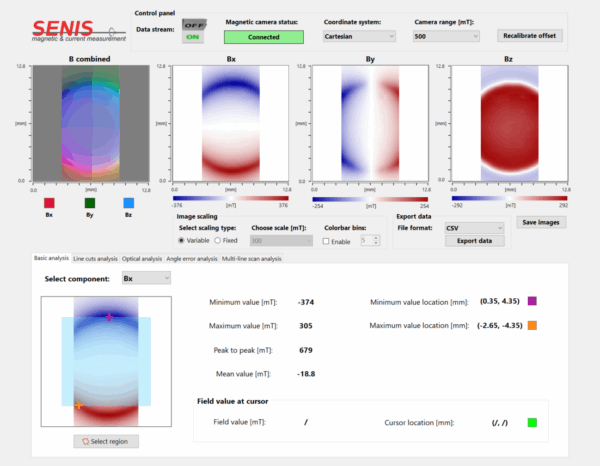

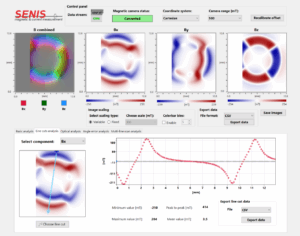

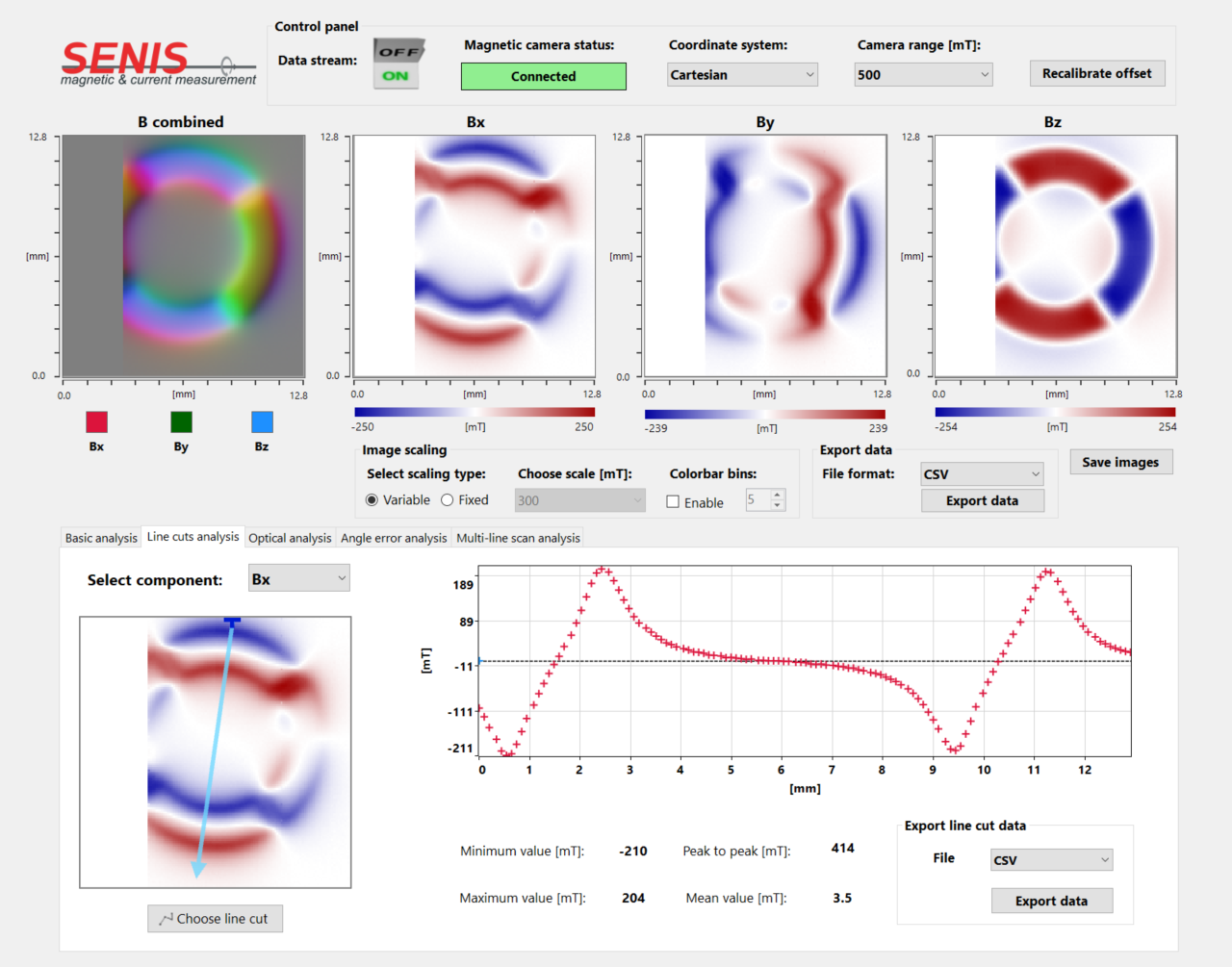

- Measures all three 3 magnetic field components of a magnetic field (Bx, By, Bz)
- Very high magnetic and spatial resolution (16k pixels)

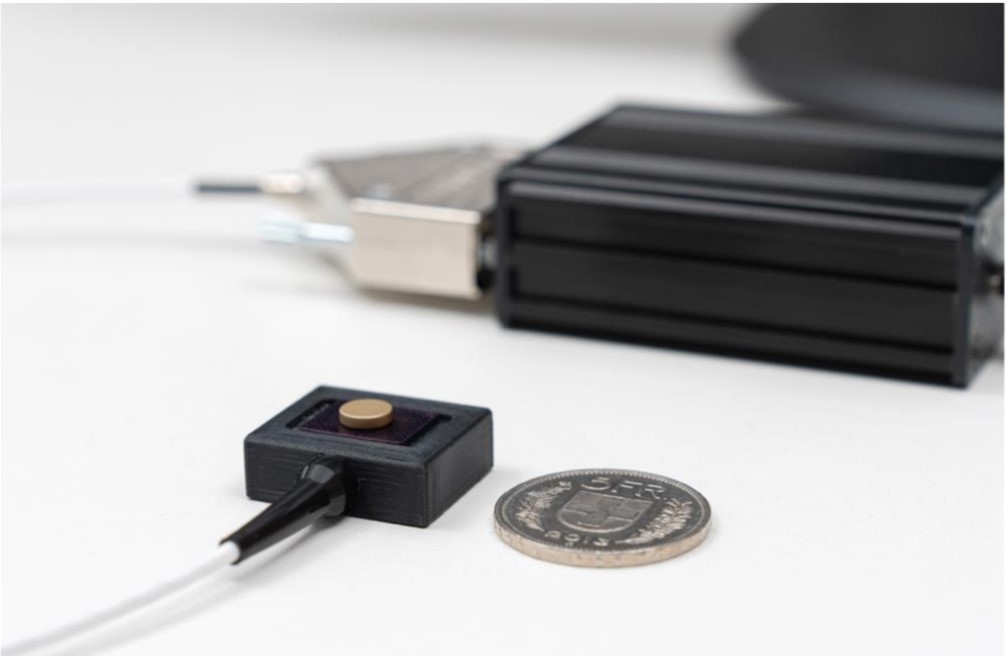

- World’s smallest sensitive volume of 27µm x 9µm x 4µm in each pixel
- High image acquisition rate of 7 image/s

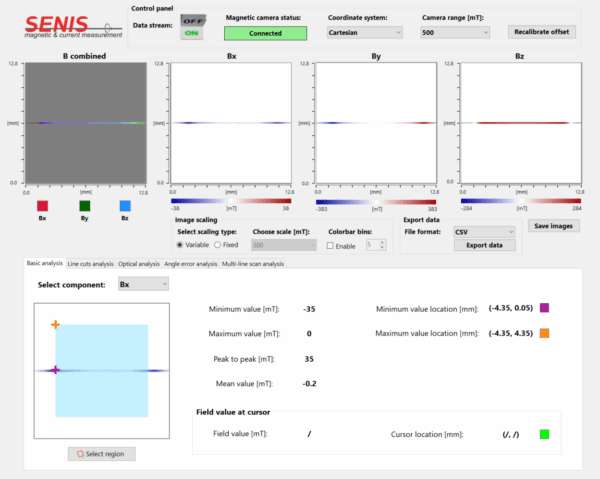

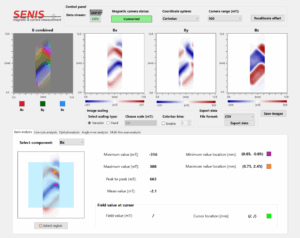

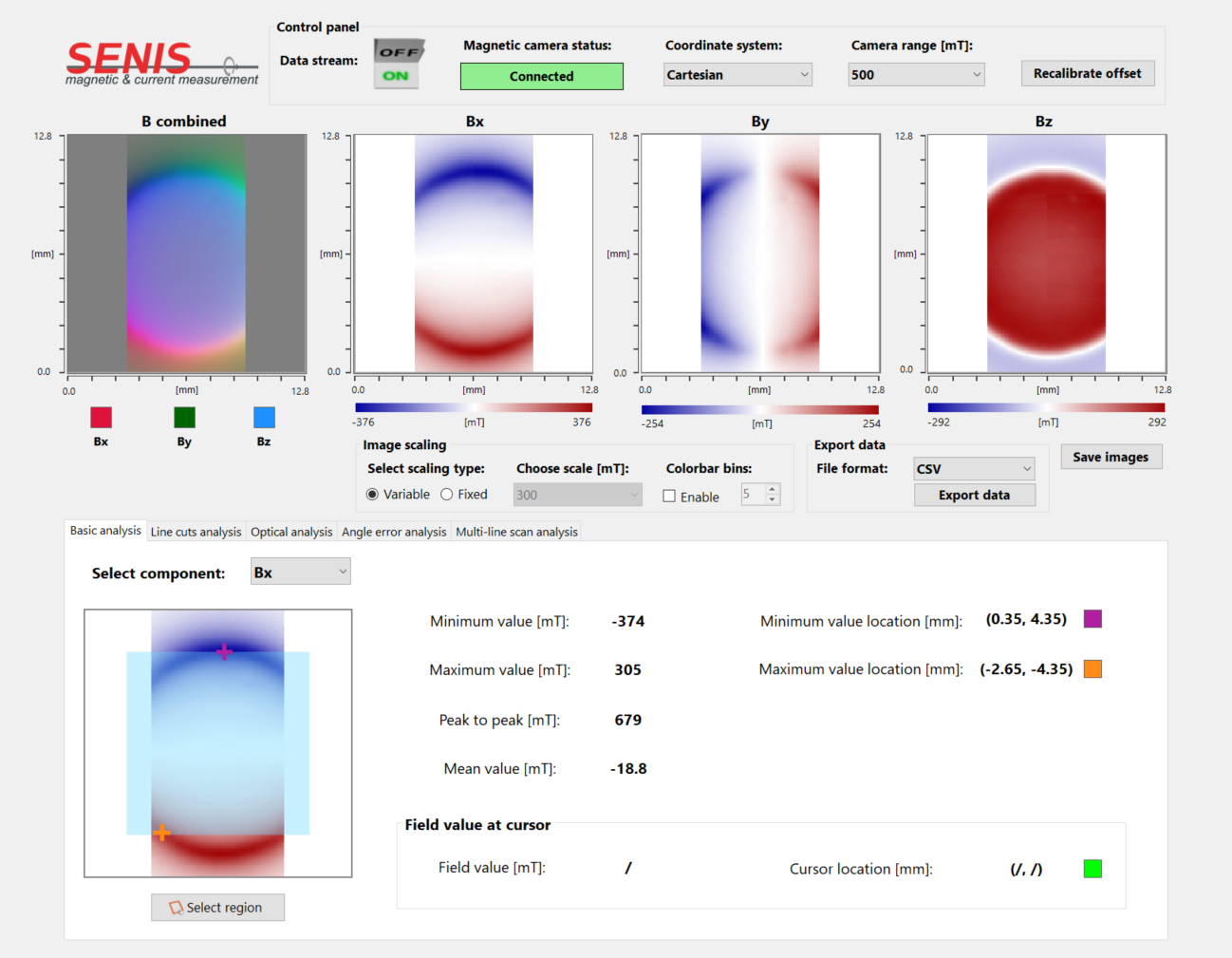

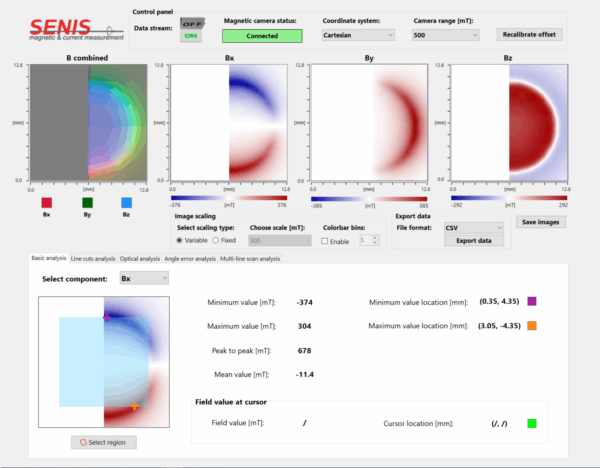

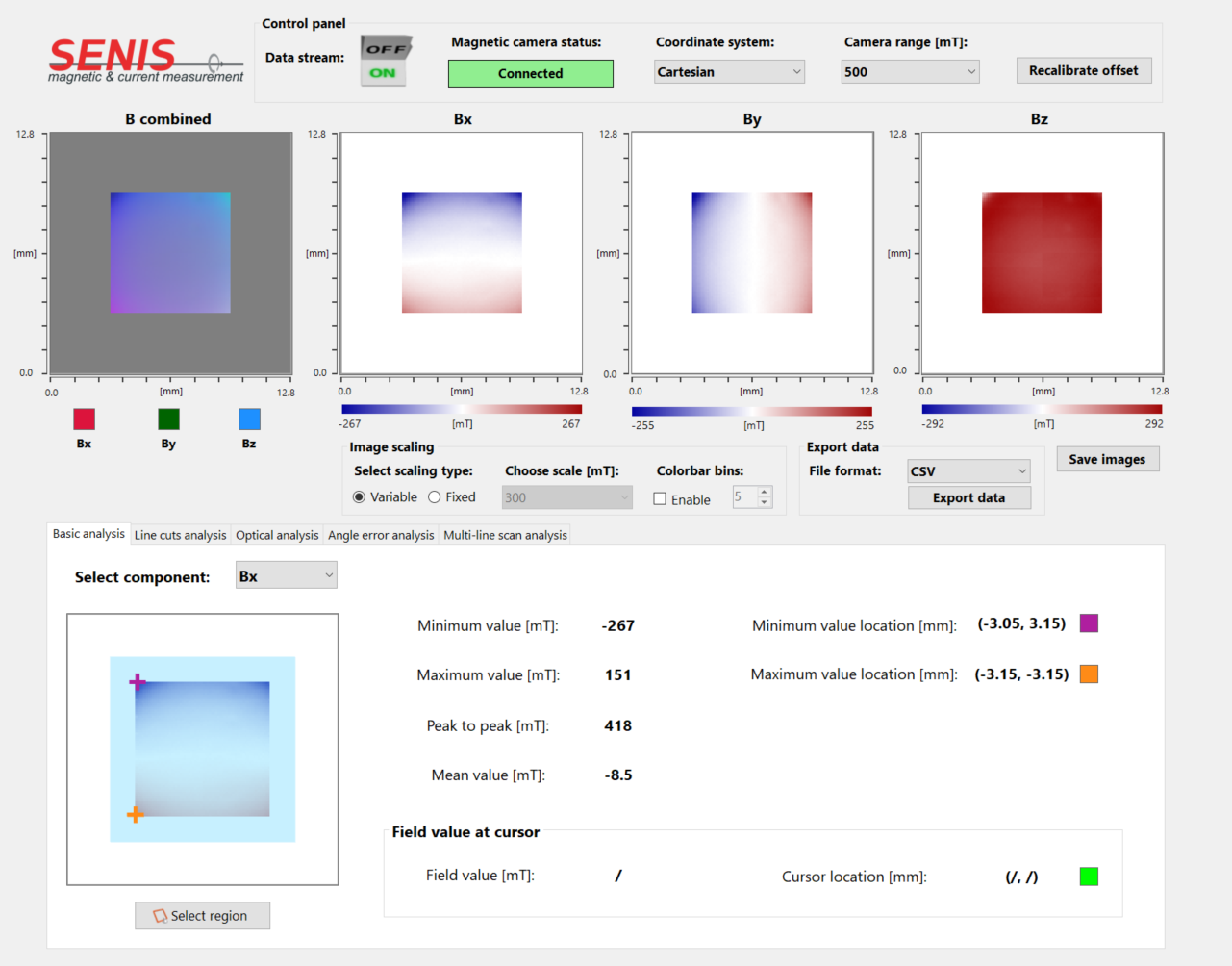

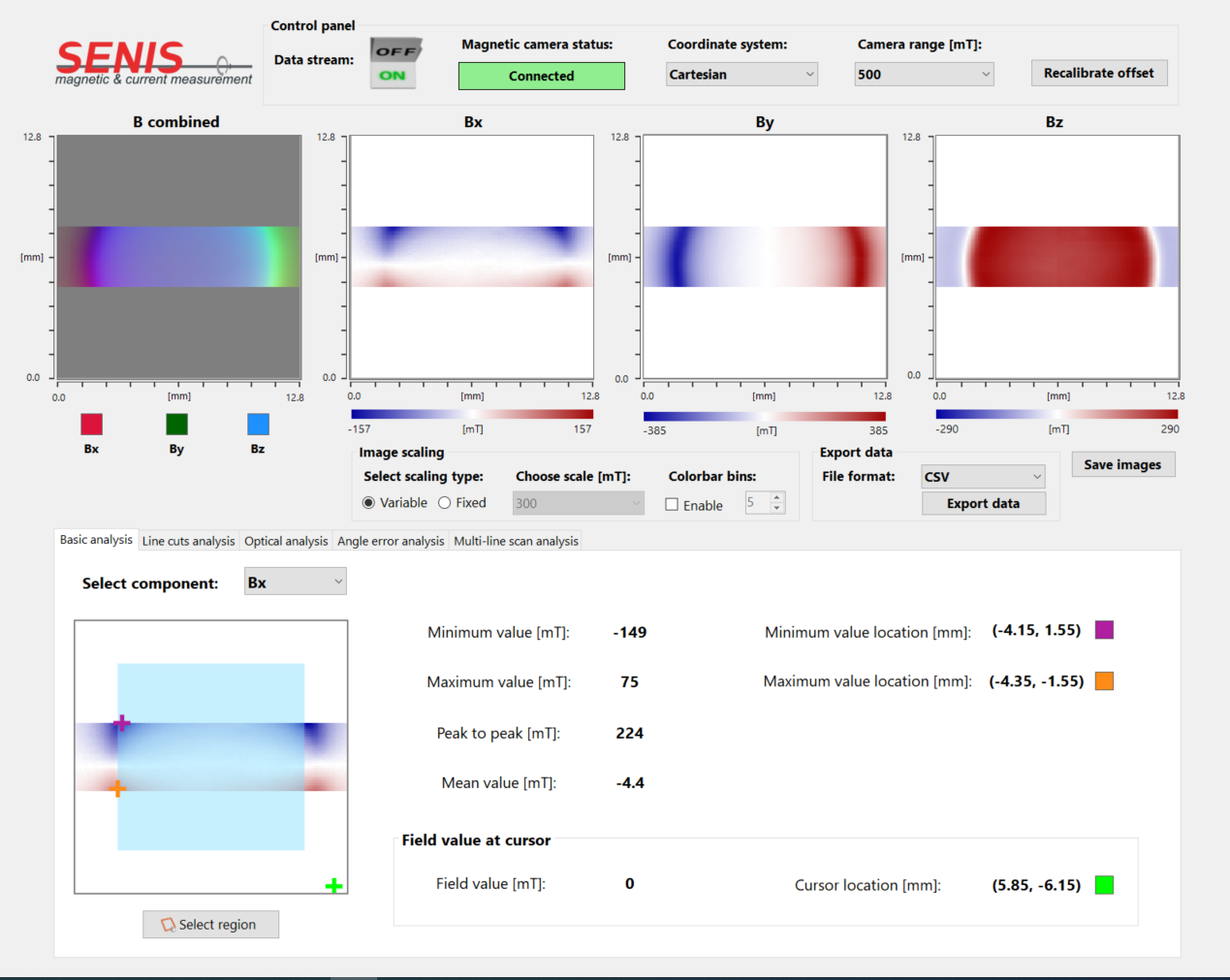

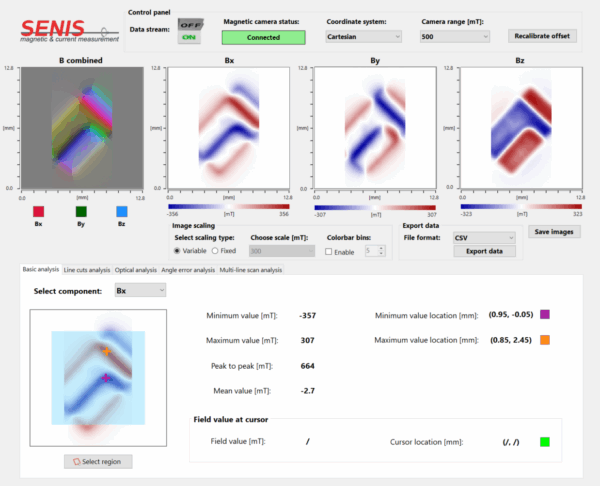

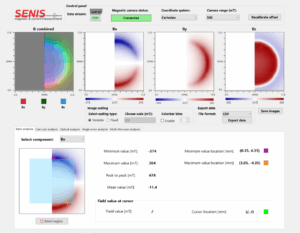

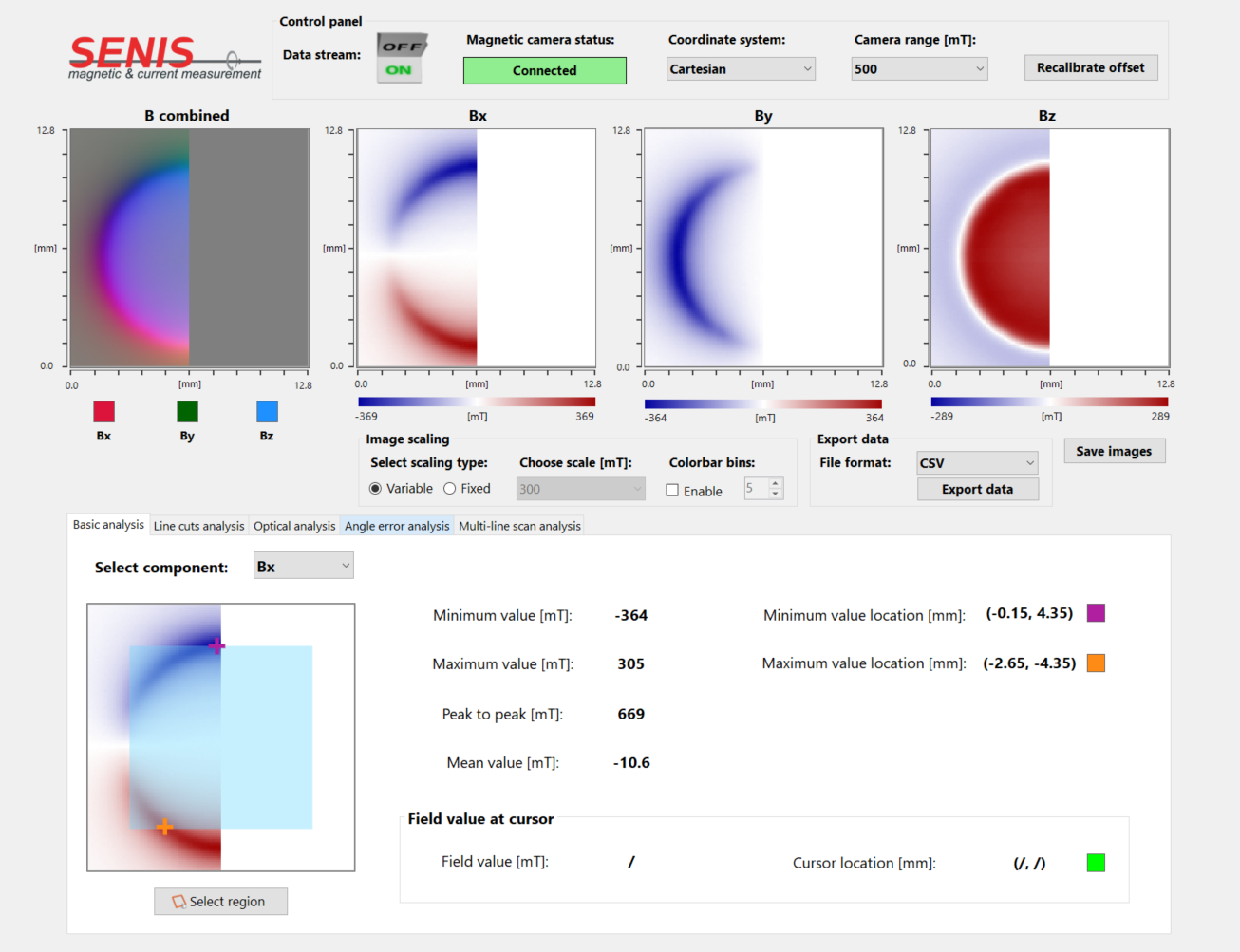

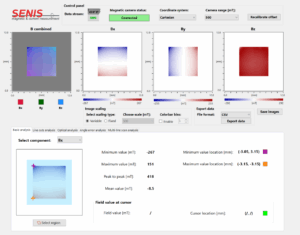

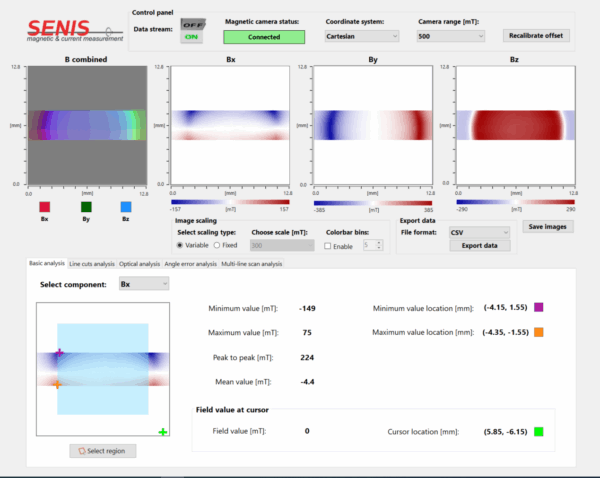

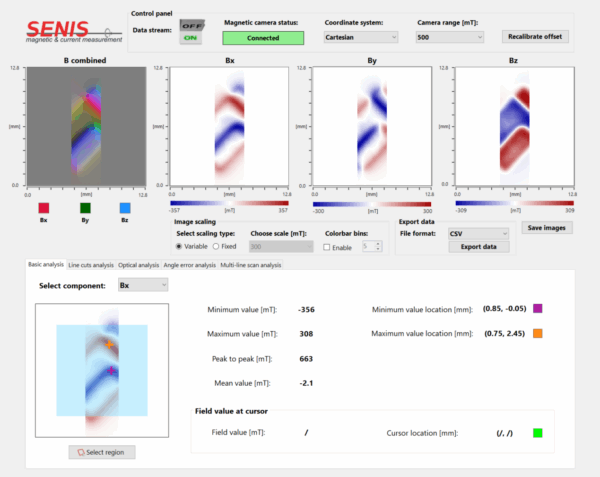

- Flexible definition of the scanned area – select one or several raws and/or columns of 3-axis Hall sensors to actively measure; this reduces data aquisition time by 20%, and the time required for measured data analysis is significantly reduced due to the smaller measured data set
- Possibility of combining multiple magnetic field cameras to achieve larger scan areas
- Application in laboratories and in production lines

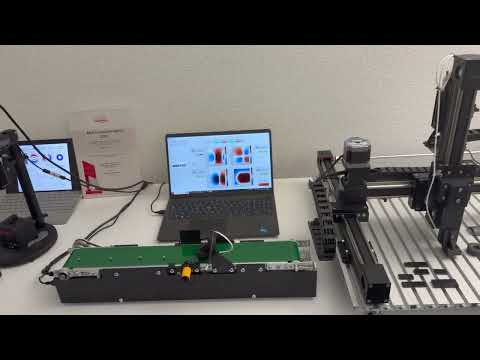

- Automated Magnet Quality Control on Your Conveyor-Belt with SENCAM – SENIS Magnetic Field Camera – YouTube
- Correlating Shape and Magnetic Field Distribution with SENCAM-OPT #MagnetInspection #QualityControl – YouTube
- High-Speed Precision Magnetic Field Mapping with SENCAM #QualityAssurance #ProductionLines – YouTube

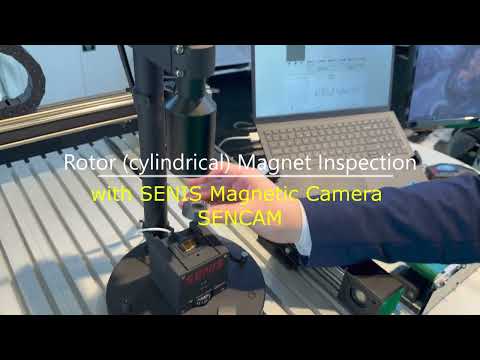

- Rotor (cylindrical) Magnet Inspection – on Magnetic Camera SENCAM – YouTube
- Actuator Cylindrical Magnet Test with SENCAM – YouTube

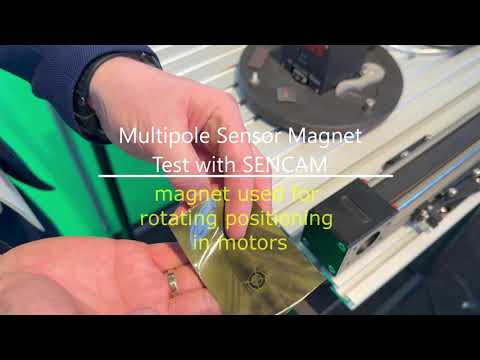

- Multipole Sensor Magnet – magnet used for rotating positioning in motors – Test with SENCAM – YouTube

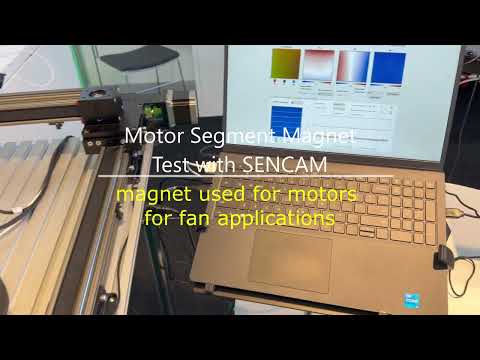

- Motor Segment Magnet – used for motors for fan applications – Test with Magnetic Camera SENCAM – YouTube

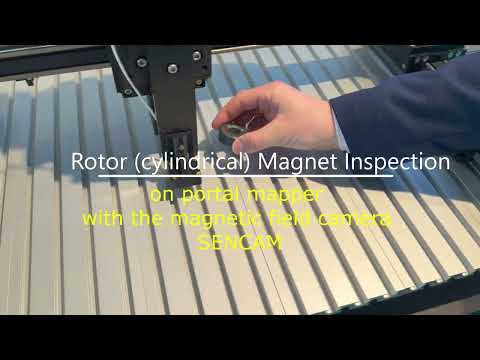

- Rotor (cylindrical) Magnet Inspection on Portal Mapper with SENCAM – YouTube

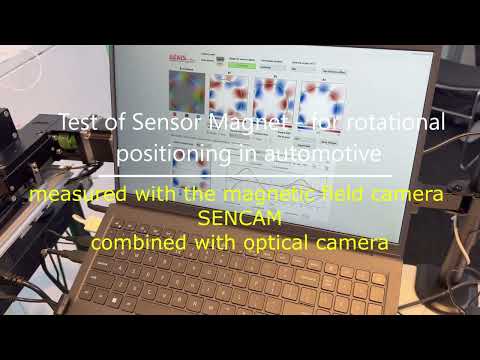

- Test of Sensor Magnet – for rotational positioning in automotive – with SENCAM – YouTube

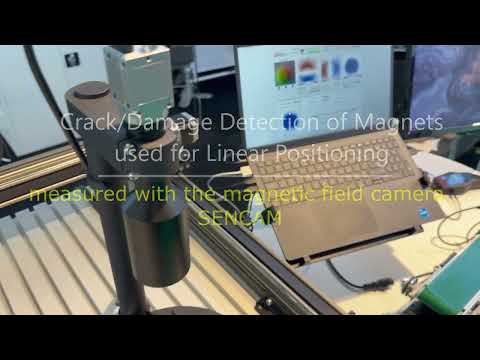

- Crack/Damage Detection of Magnets – used for Linear Positioning – YouTube

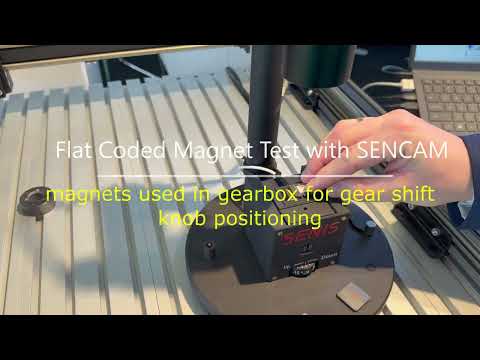

- Flat Coded Magnet Test – used in gearbox for gear shift knob positioning – measured with SENCAM – YouTube

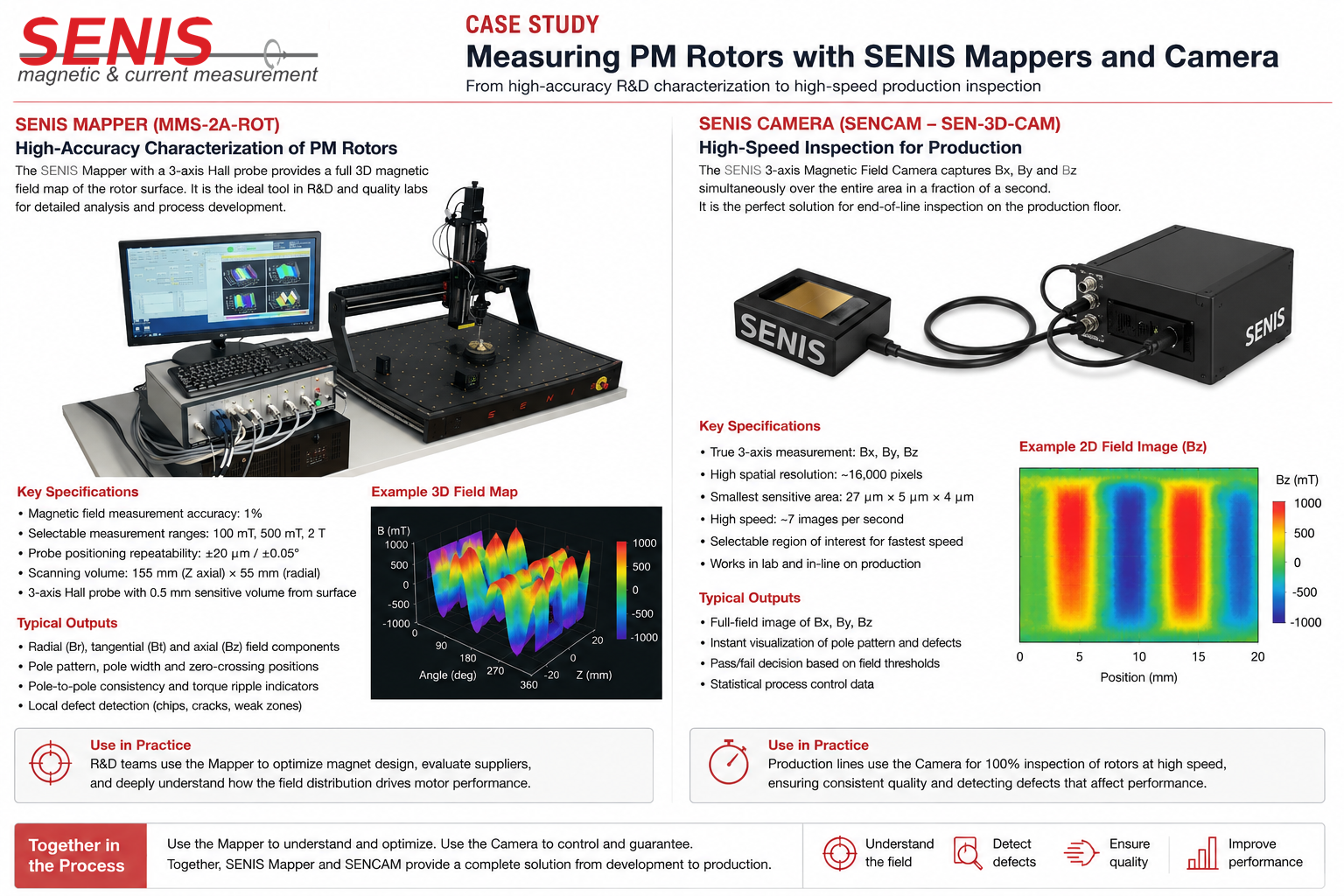

Application example: How to Measure the Magnetic Field Distribution of a PM Rotor
