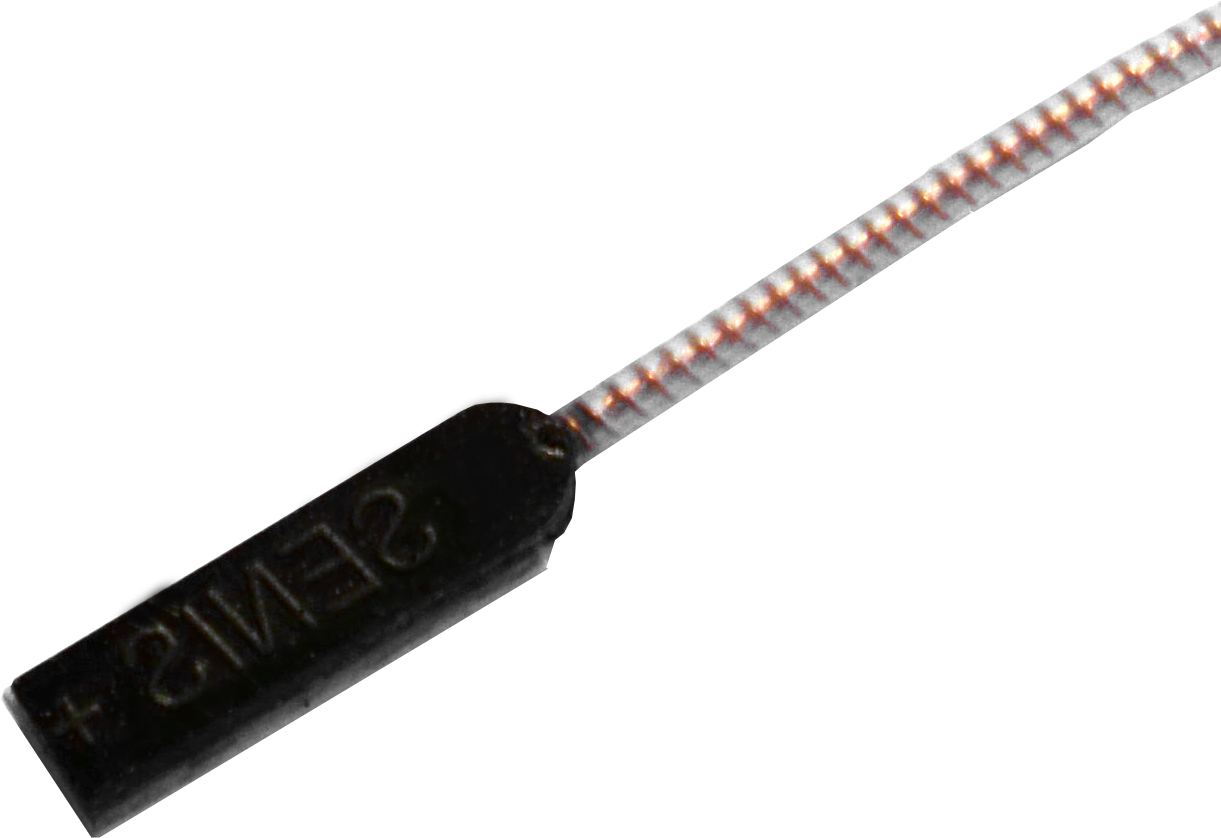

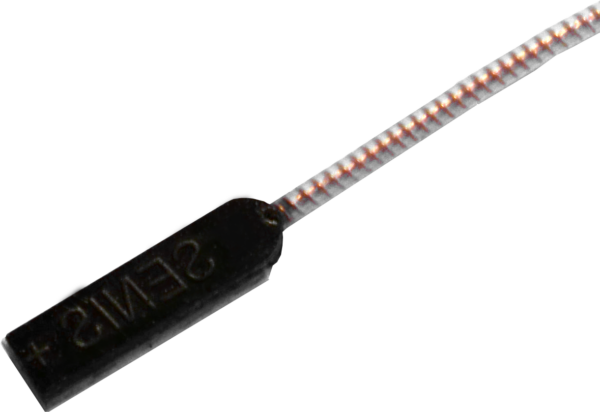

3-axis Hall Probe A

Very robust Hall probe with the following dimensions (length, width, thickness in mm): 16.5 x 5.0 x 2.3.
Available are 1-, 2-, or 3-axis Hall probes.


  • Fully integrated CMOS 3-axis (Bx, By, Bz) Hall Probe, of which one, two, or three channels are used
  • Very high spatial resolution (By: 0.03 x 0.005 x 0.03mm^3; Bx and Bz: 0.15 x 0.01 x 0.15 mm^3)
  • High angular accuracy (orthogonality error less than 0.1°)
  • High frequency bandwidth (from DC up to 25kHz / 75kHz)
  • Available as a separate unit for OEM customers



Transducers: F3A, F1A
Teslameters: 3MH3
