Hall Probes

If you would like to see how other companies use SENIS products, please see some of our references with selected Applications.

SENIS is the only provider of compact solutions for accurate Btotal measurement in a single point, also for high-gradient magnetic fields!

3D Hall sensor probes for accurate Btotal measurements in one point.

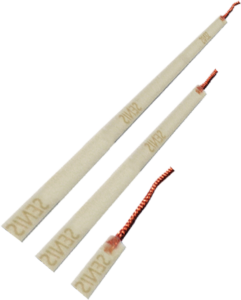

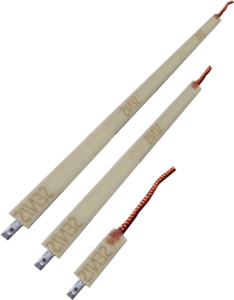

1. Fully Integrated Probe is the only single-chip 3-axis Hall Probe with integrated amplifier on the world market:

Probe Types: A, C, H, K, L
Very high spatial resolution for 2- & 3-axis magnetic field measurement in a single spot (0.15 x 0.01 x 0.15 mm3 ) with mutual orthogonality of sensing axes better than 0.5°
High Frequency Range (DC to 25KHz for 3-axis / DC to 75kHz for single axis)
High disturbance immunity
Ceramic package for high temperature range -40°C to +160°C
SENIS devices used with these Hall Probes are: Analog Transducers F3A, F1A and I3A; Digital Teslameters 3MH3, 3MTS and 3MH6; All Magnetic Mappers.
The Hall Probe performance is defined by the device to which it is connected. Please check the datasheets of the Transducer/Teslameter/Mapper for the Hall probe performance.

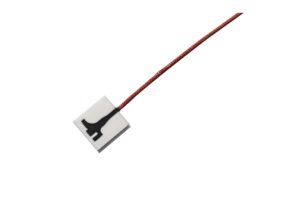

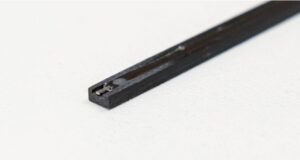

2. Hybrid Probes integrate discrete Hall Sensors and a temperature sensor:

Probe Types: S, I, J, P
Ultra-Low Noise & Offset Fluctuations
High Linearity
Customizable sensors placement in the probe package with different forms and dimensions
SENIS devices used with these Hall Probes are: Analog Transducers H3A (old version) and H3B (new version).

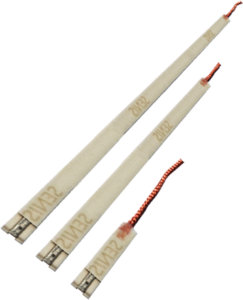

3-axis Hall Probe C
