3-axis Hall Probe H
- Very thin and long fully integrated 3-axis ceramics Hall probe.
- Available in 2 different thicknesses:
1. 0.5 mm * – very thin probe, and
2. 0.75 mm – a bit thinner and more robust probe.
* To distinguish the variants 1 and 2, the H with the thickness of 0.5 mm have the suffix -x in the Part Numbering.

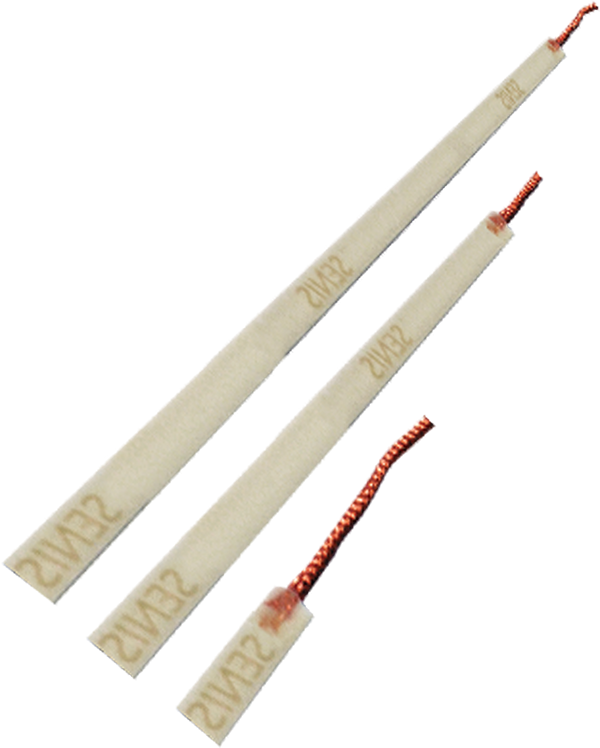

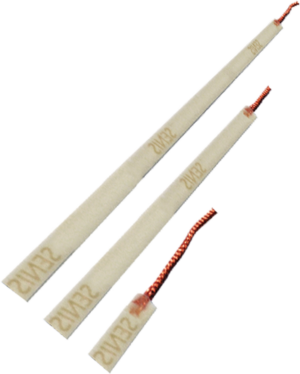

- Available in 3 different lengths:

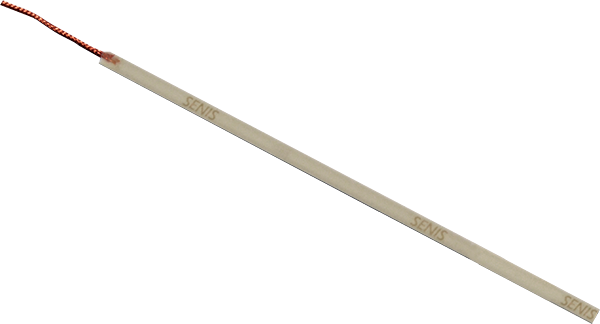

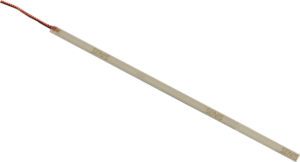

1. L (long): 71 mm,

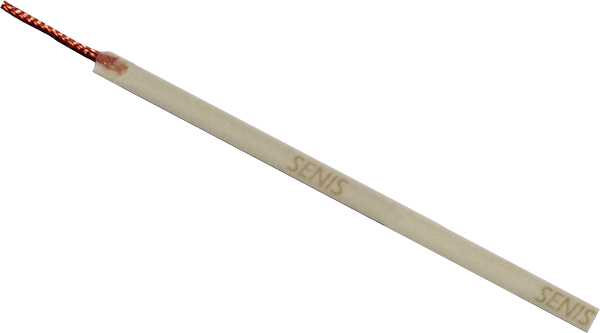

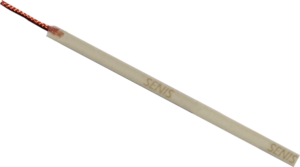

2. M (medium): 47 mm, and

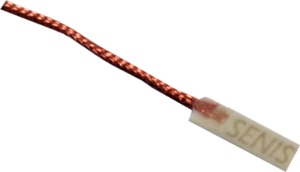

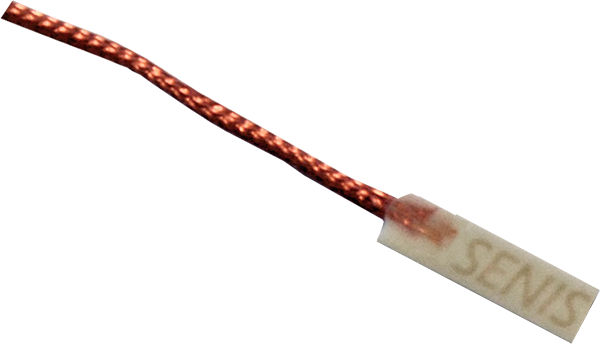

3. S (small): 8 mm.
KEY FEATURES
- Fully integrated CMOS 3-axis (Bx, By, Bz) Hall Probe, of which one, two, or three channels are used
- Very high spatial resolution (By: 0.03 x 0.005 x 0.03mm^3; Bx and Bz: 0.15 x 0.01 x 0.15mm^3)
- High angular accuracy (orthogonality error less than +/-0.5°)
- High frequency bandwidth (from DC up to 25kHz or 75kHz)
