3-axis Hall Probe K

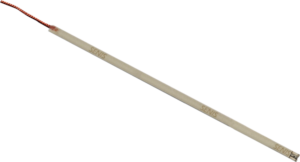

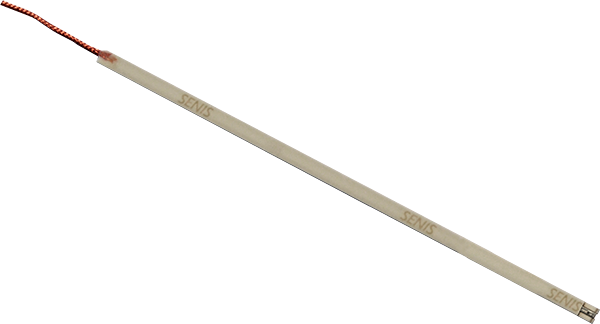

- Very thin and long fully integrated 3-axis ceramics Hall probe with the naked Si chip mounted on the ceramic substrate.
- Available in 2 different thicknesses:
1. 0.5 mm *, with the sensitive probe tip dim. 2.1 x 2.0 x 0.25 mm, and
2. 0.75 mm, with the sensitive probe tip dim. 2.1 x 2.0 x 0.5 mm.
* To distinguish the variants 1 and 2, the K with the thickness 0.5 mm have the suffix -x in the Part Numbering.

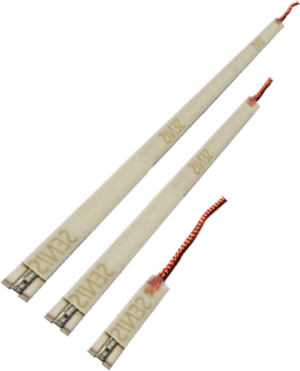

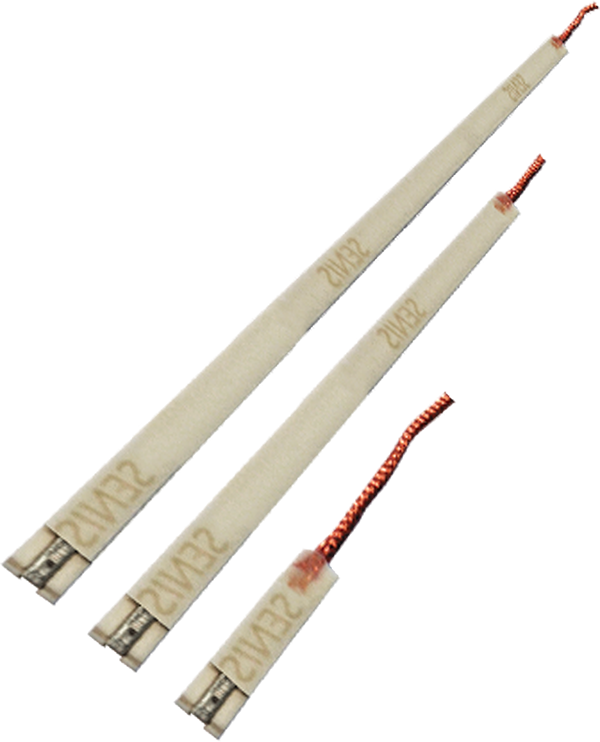

- Available in 3 different lengths:
1. L (long): 71 mm,

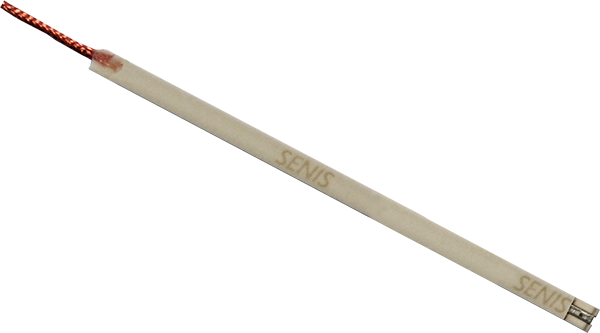

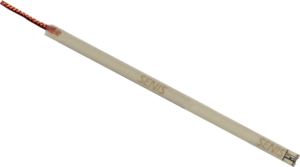

2. M (medium): 47 mm, and

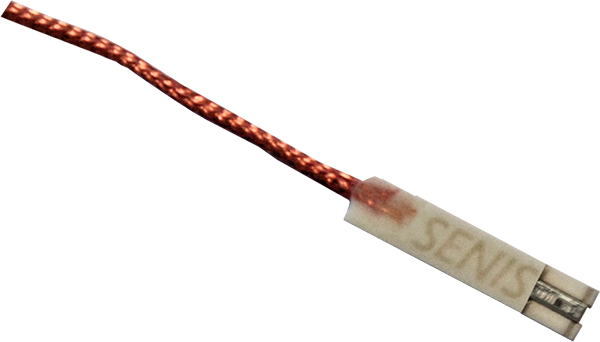

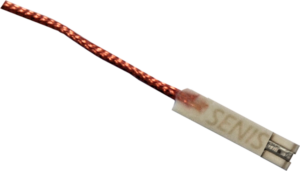

3. S (small): 8 mm.
KEY FEATURES
- Fully integrated CMOS 3-axis (Bx, By, Bz) Hall Probe, of which one, two, or three channels are used
- Very high spatial resolution (By: 0.03 x 0.005 x 0.03mm^3; Bx and Bz: 0.15 x 0.01 x 0.15mm^3)
- High angular accuracy (orthogonality error less than +/-0.5°)
- High frequency bandwidth (from DC up to 25kHz (3D probes) or 75kHz (1D transverse probes))
