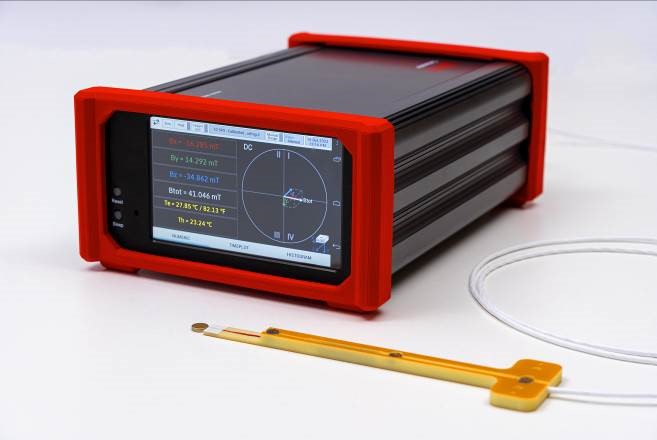

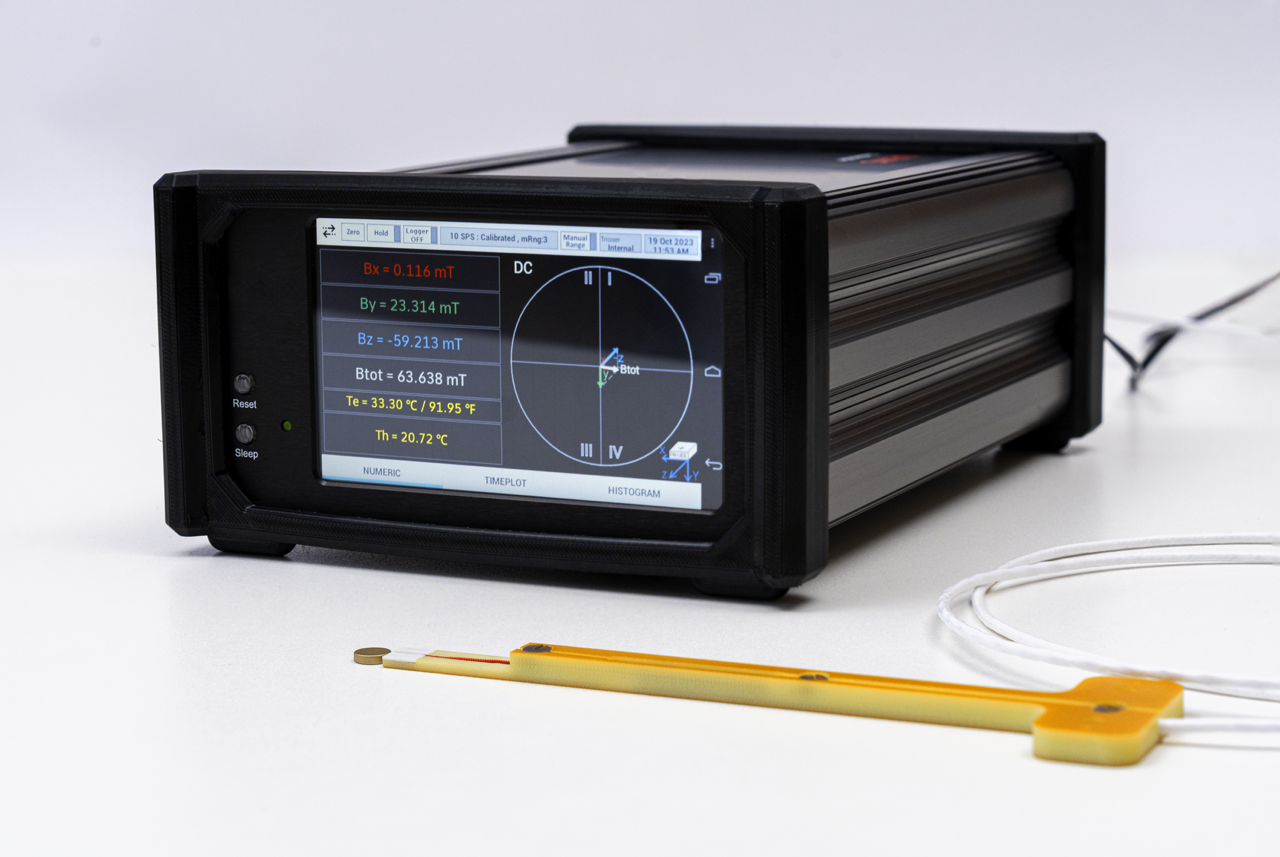

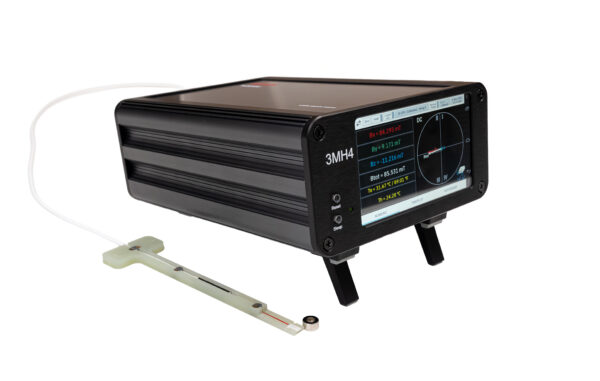

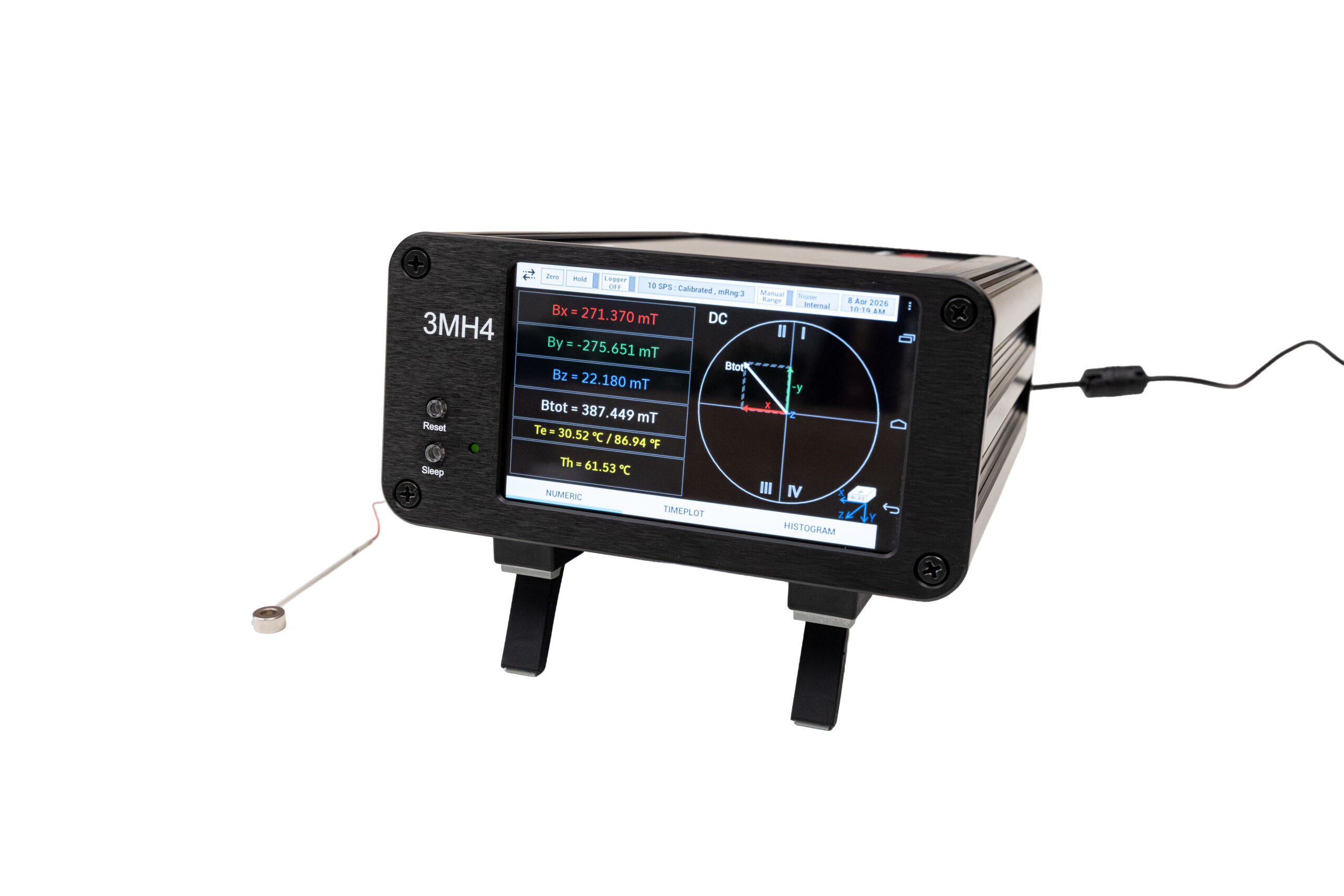

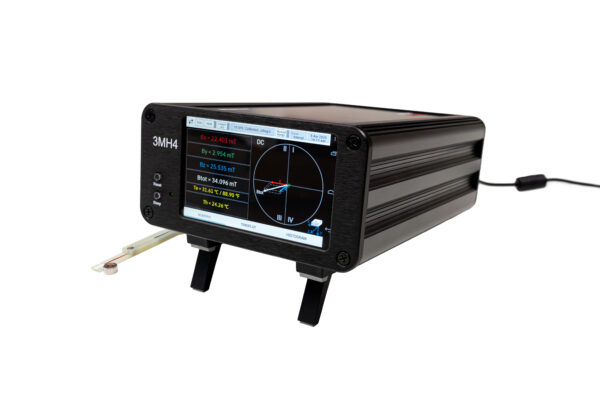

3MH4 Digital Teslameter – New!

  • High measurement DC accuracy: < 0.1% (1’000ppm)
  • Very good stability of the digital readings
  • Very high spatial resolution: FSV of the applied 3D Hall IC in the C Probe Type is only 0.10 x 0.01 x 0.10 mm3
  • Probe interchangeability is ensured: Calibration data of each Hall probe are stored in an integrated EEPROM
  • High temperature stability: < 100ppm/°C
  • Very high magnetic DC resolution: better than 1ppm @ ±2T range
  • Up to 4 (four) selectable magnetic field ranges: 100mT, 500mT, 2T, 20T (calibrated up to 9T)

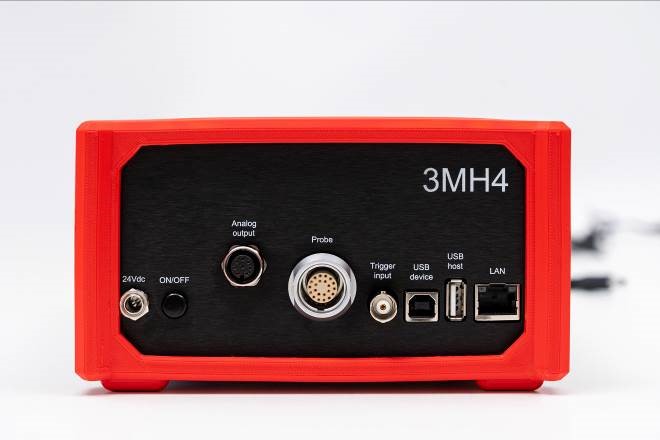

  • 0 serial communication and LAN
  • Triggers Internal and External – Single shot, Manual and Continuous

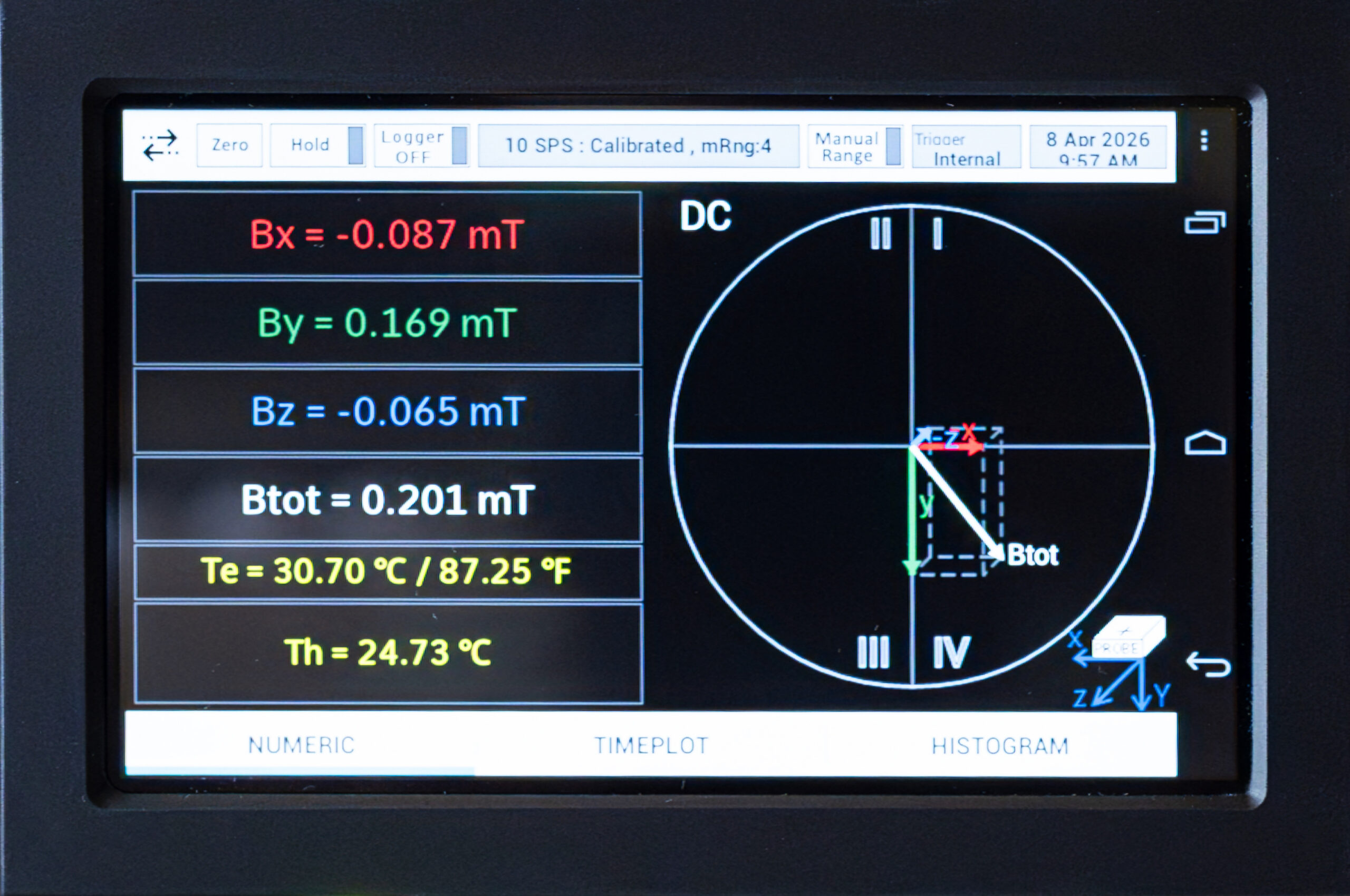

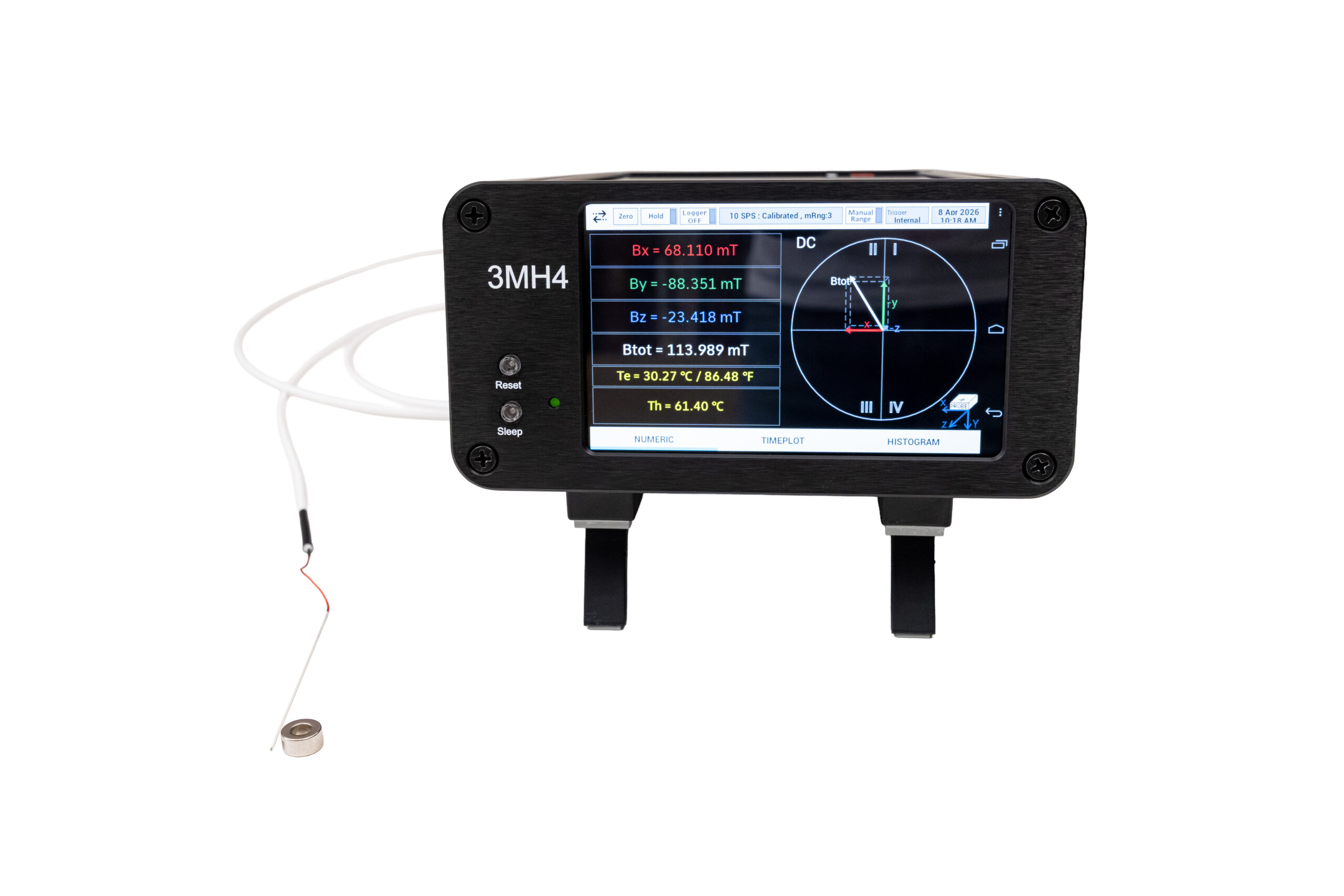

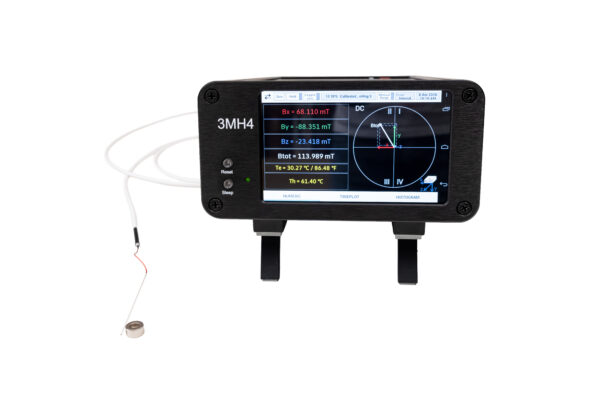

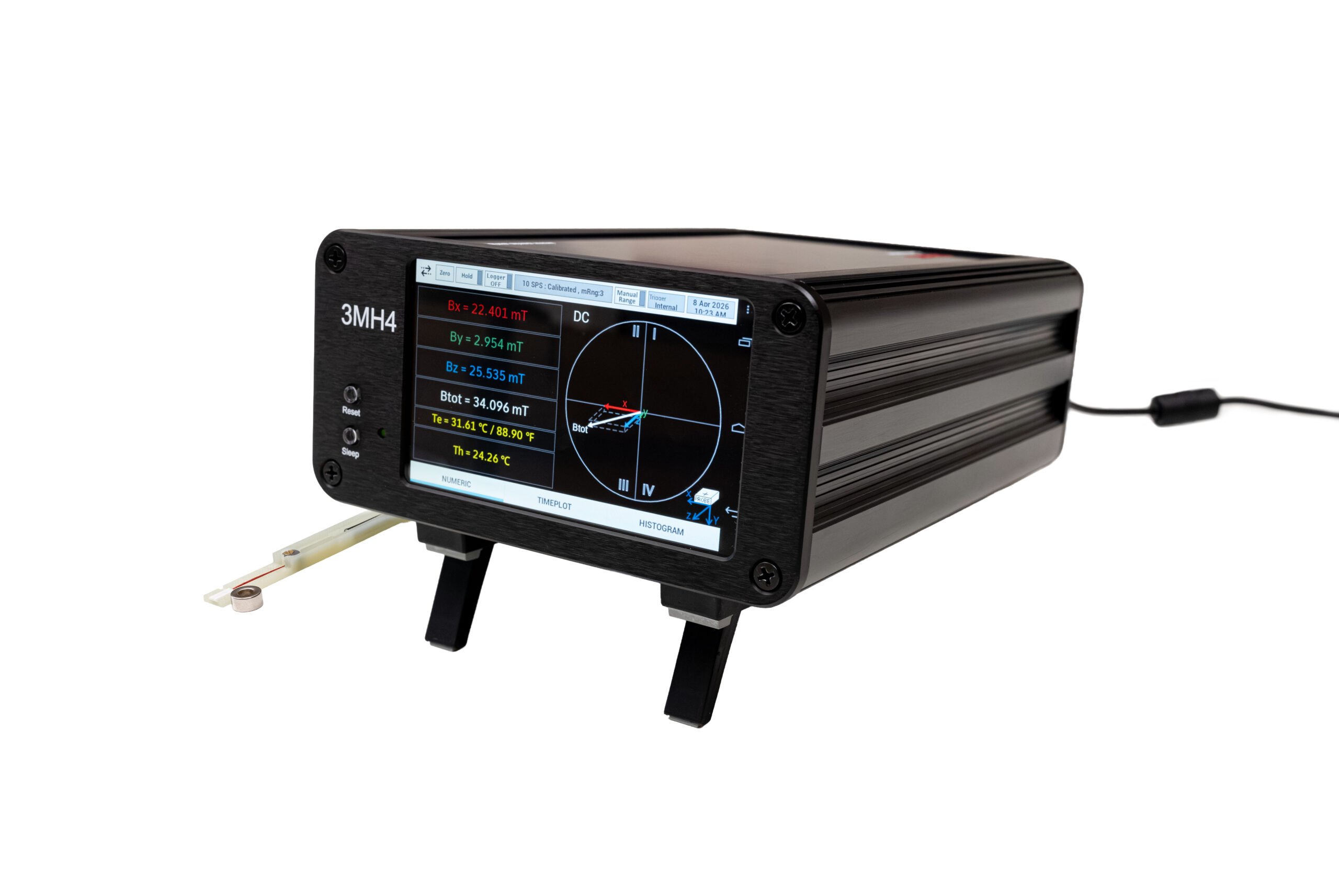

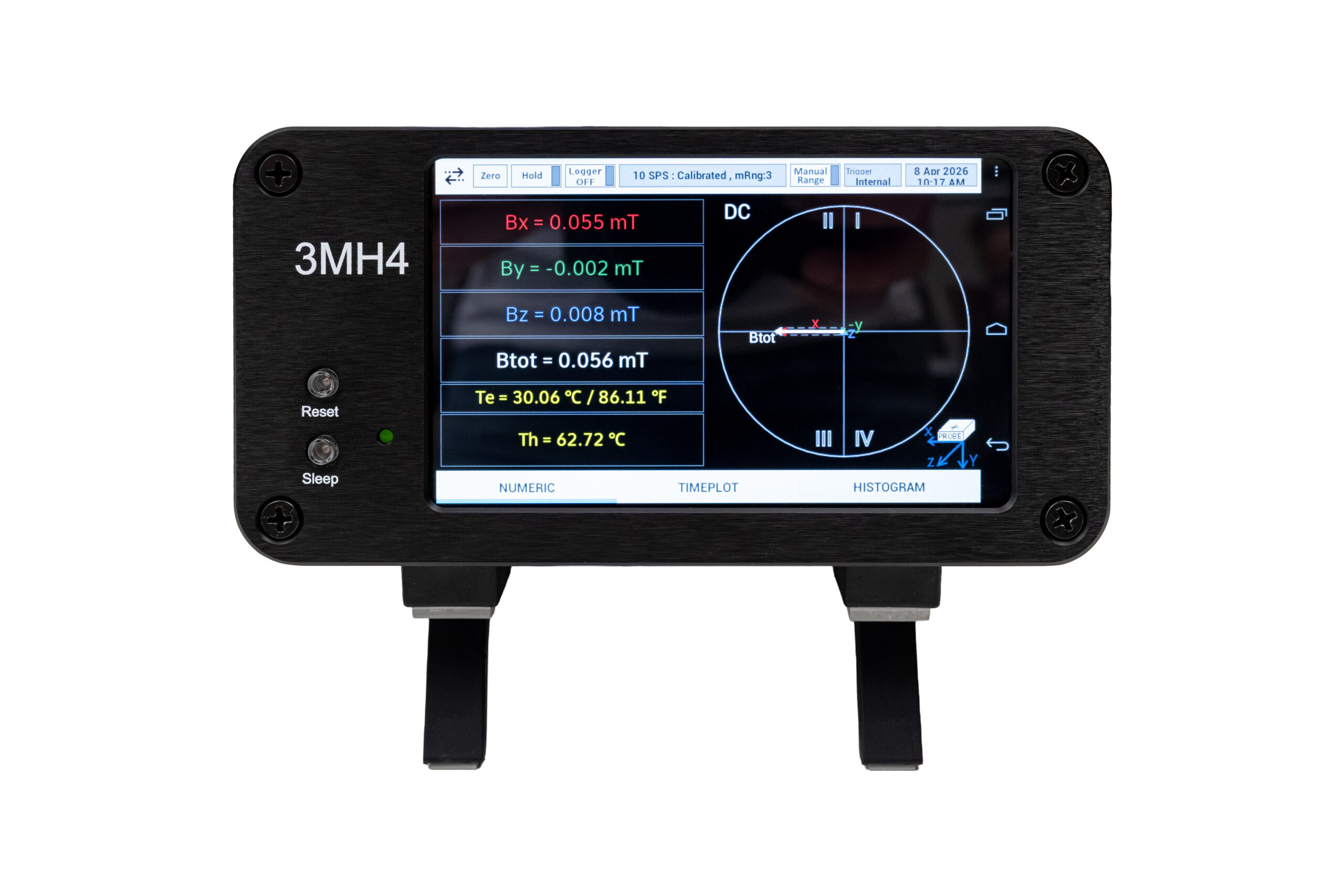

  • TFT LCD module (108 x 65 mm) for Bx, By, Bz, Btot, and the Th (probe) and Te (box) temperatures
  • 24-bit A/D Converter
  • Uncalibrated analog outputs
