ANYCS – Current Sensor SENCS1Dx

Preliminary Specification:

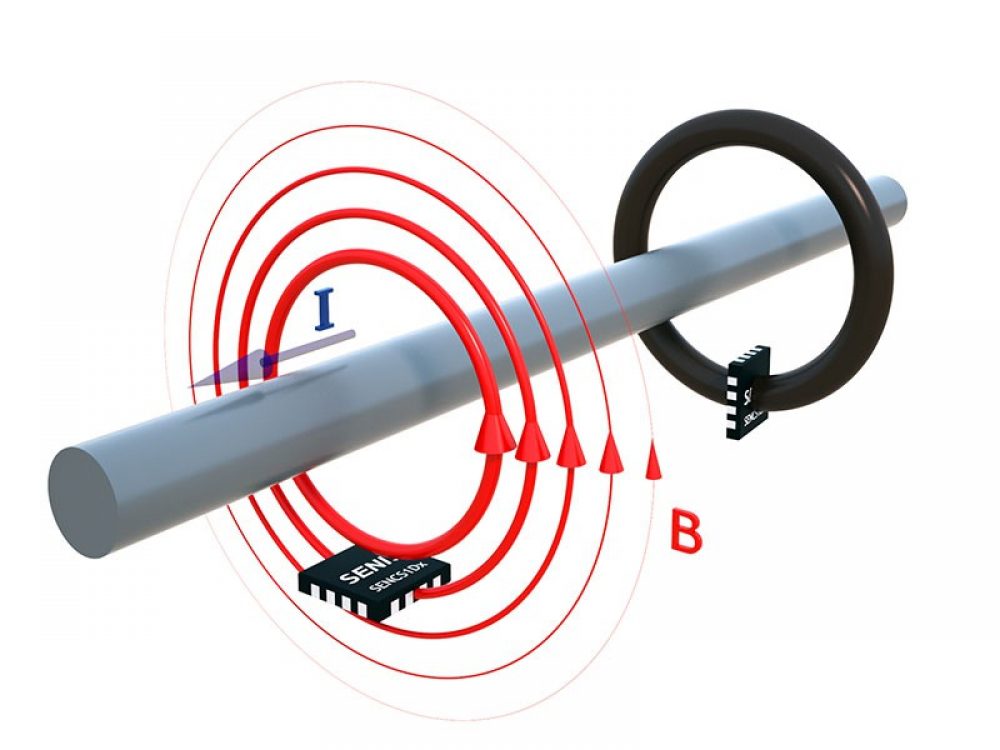

• Sensitivity parallel or perpendicular to chip surface
• Ultra fast response time <0.5us
• 32 Selectable output ranges from 5mT to 1T
• Magnetic field resolution: 0.5uT
• Large f-bandwidth: DC to 1MHz
• Quiescent reference output with adjustment from 0-5V
• Analog output (ratiometric & non-ratiometric)
• Operating temperature: -40 / +150C
• Power supply: 3.3V-5.5V; Under/Over voltage detection
• ESD: 4kV
