3DHALL – 3-Axis Hall Magnetic Sensor SENM3Dx

Preliminary Specification:

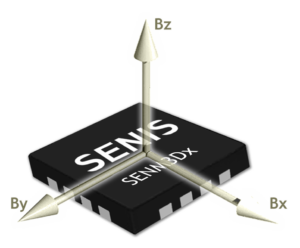

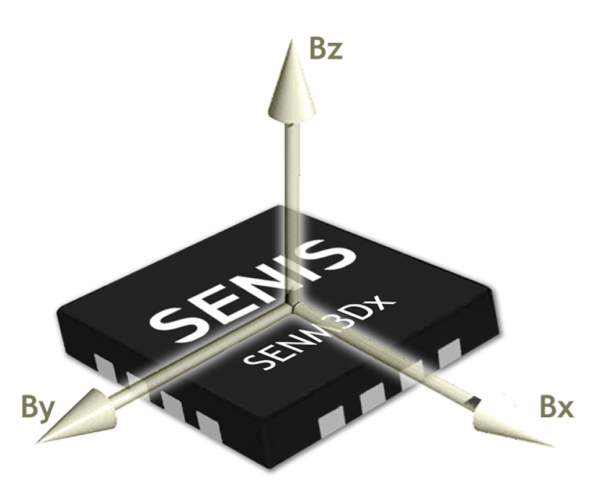

  • Selection of active sensitivity axis 1D, 2D or 3D
  • High Magnetic resolution: 1uT
  • High spatial resolution: 100um x 100um for 3-axis
  • Six selectable ranges: from 40mT to 4T
  • High frequency bandwidth, DC to 300kHz
  • Built-in high-resolution temperature sensor
  • On-chip correction of sensitivity, offset, noise and drift
  • On-chip parameterization
  • Analog, PWM and SPI digital output
  • Programmable threshold comparator

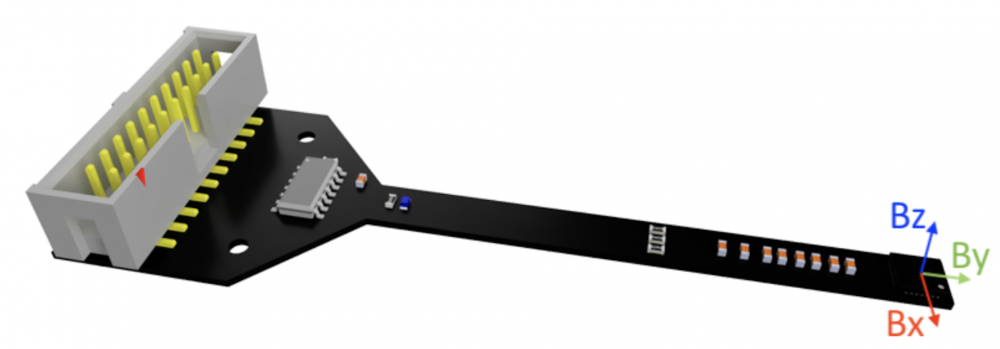

  • Evaluation Kit available. SENM3Dx EvalKit includes Calibration to 2T.

Add to Inquiry

APPLICATION:

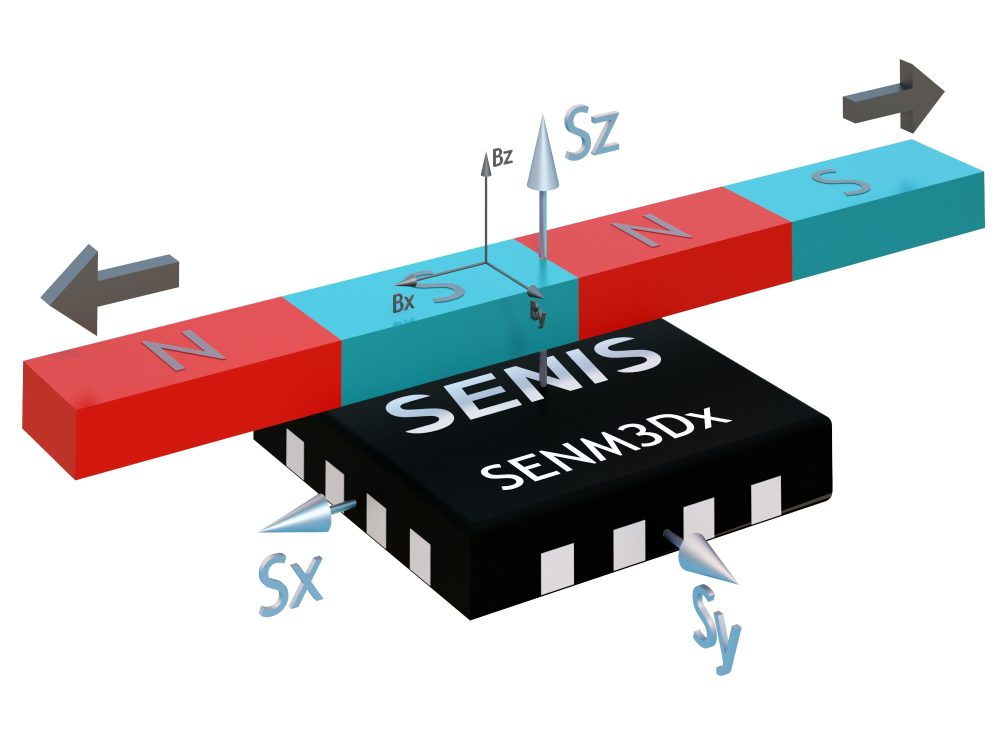

  • 3D Positioning sensor (linear and angular)
  • 1D, 2D and 3D Proximity sensor
  • Measurement probes for magnetometers
  • Multi-probe arrays
  • Current sensor with selectable ranges
