3MTS USB handheld Teslameter

The 3MTS is a handheld three-axis teslameter (gaussmeter) that runs from a PC or tablet. A fully integrated 3-axis Hall probe measures Bx, By and Bz simultaneously in a very small volume, and the software also shows the total field Btotal. The USB connection provides power supply, control, data acquisition and display.

Add to Inquiry

The 3MTS is a handheld three-axis teslameter (gaussmeter) that runs from a PC or tablet. A fully integrated 3-axis Hall probe measures Bx, By and Bz simultaneously in a very small volume, and the software also shows the total field Btotal. The USB connection provides power supply, control, data acquisition and display.

Choose the 3MTS-1 with the probe in a rigid carbon-fibre holder, or the 3MTS-2 with the probe on a thin flexible cable for places that are hard to reach.

Request a quotation

Price from CHF 2,800 for the configuration listed under Included.

Who it is for

  • Universities and R&D laboratories, for example for initial tests
  • Magnet suppliers testing permanent magnets, often with the 3MTS integrated into their inspection tools
  • Quality control and monitoring of permanent magnets and magnet systems
  • Magnet system development and process control
  • Measuring the environmental field, field mapping, production lines and inspection systems

Choose another SENIS model if you need:

  • DC accuracy better than 1 % or DC resolution much better than 50 µT: 3MH4 (< 0.1 %) or 3MH6-E (< 0.01 %).
  • A battery-operated instrument with its own display, without a PC: 3MH1-E.

Compared with the 3MH1-E, the 3MTS offers slightly better accuracy and PC software to visualise and analyse the data.

Key specifications

Specification 3MTS
Axes 3, measured simultaneously (Bx, By, Bz); Btotal shown in the software
Measurement ranges ±100 mT, ±500 mT, ±3 T, ±20 T (selectable)
DC accuracy < 1 % of full scale on ±100 mT and ±500 mT; on the ±3 T range < 2 % of full scale up to ±2 T and typically < 3 % up to ±3 T; ±20 T range 3–5 %
Resolution 50 µT peak-to-peak noise on the ±100 mT range with 1 s averaging (120 µT on ±500 mT, 500 µT on ±3 T)
Bandwidth DC to 0.5 kHz
Sampling rate 1 kHz
A/D conversion 12-bit
Field-sensitive volume 150 × 10 × 150 µm³
Interface USB 2.0 or 3.0, to a PC or tablet
Operating temperature −20 to +85 °C; 3MTS-2 probe and cable −20 to +160 °C
Dimensions 3MTS-1: 162 × 22.5 × 10.5 mm overall, probe stem 100 × 5 × 1 mm. 3MTS-2: probe 8.0 × 4.0 × 0.9 mm; electronic box 62 × 22.5 × 10.5 mm
Angular accuracy < ±2° to the reference surface
Long-term stability < 1 % over 10 years
Weight 3MTS-1: 30 g (electronics 20 g, probe stem 10 g); 3MTS-2: 70 g (electronics 20 g, cable 50 g)

The 3MTS also measures AC fields within its bandwidth. Accuracy figures above are DC specifications; for AC measurements at your field amplitude and frequency, contact SENIS.

Probe versions

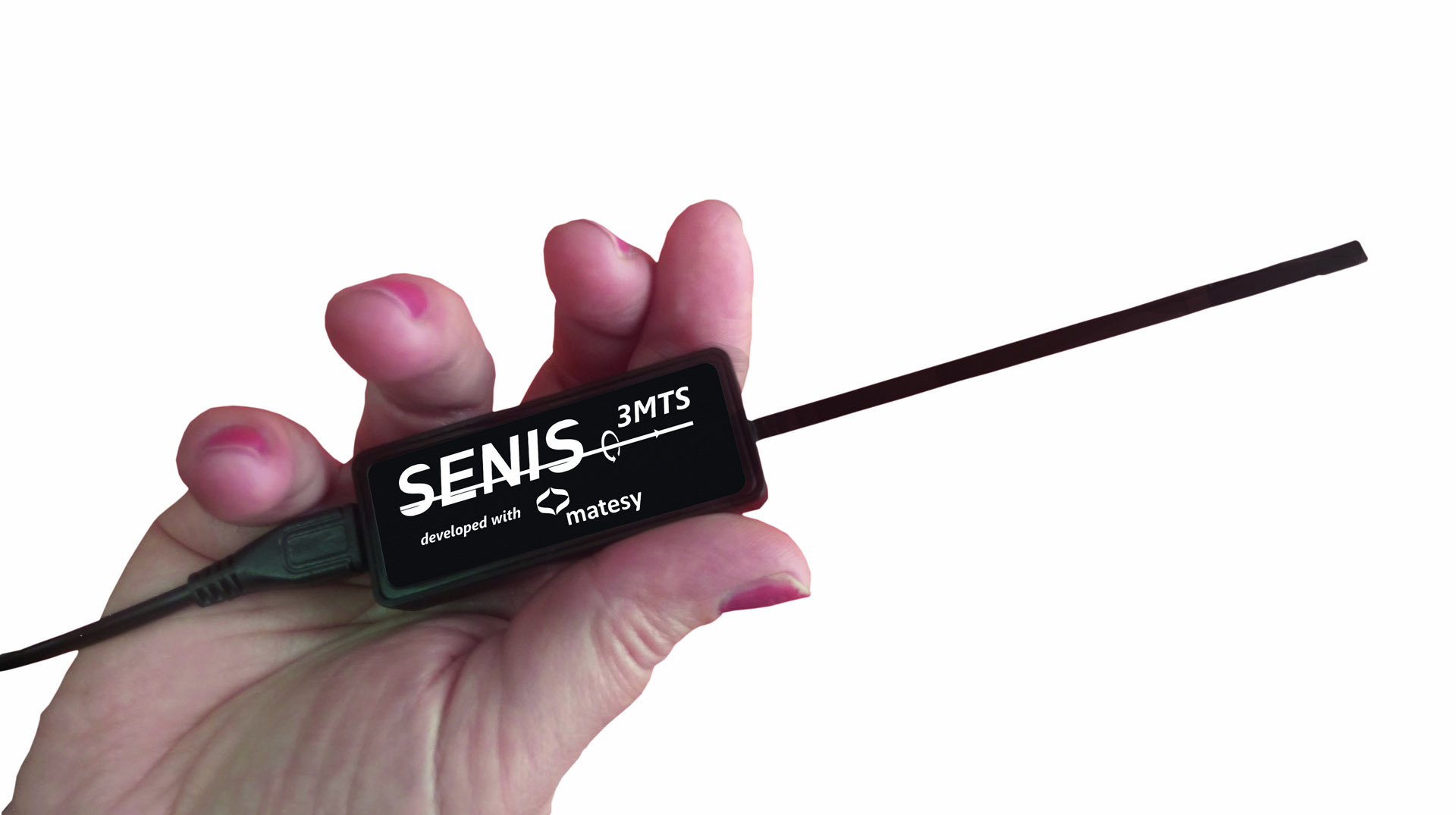

  • 3MTS-1: 3-axis Hall probe in a rigid carbon-fibre holder, 1 mm thick including the holder.

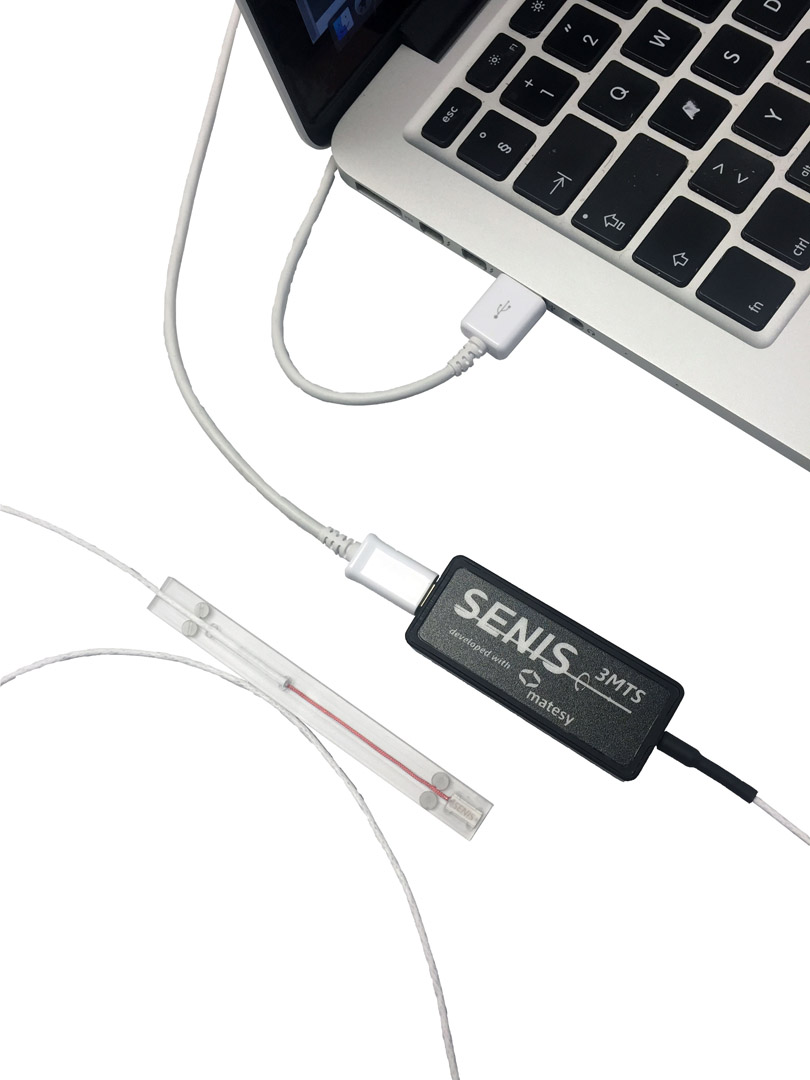

  • 3MTS-2: type C ceramic 3-axis Hall probe on a flexible, shielded cable (Ø 1.7 mm, PFA jacket; Ø 0.7 mm for the first 50 mm at the probe), permanently connected. Standard length 1 m; 2 m and 5 m available.

The two versions are different instrument configurations. The probes cannot be swapped between instruments.

Live three-axis measurements and USB logging

Choose the 3MTS for handheld three-axis measurements that you want to view and record on a Windows PC. The supplied software provides the live display, logging and CSV/XLS export. The documented SENIS communication protocol for your own data acquisition/analysis software is delivered with the instrument. For portable measurements with an instrument display and no PC, consider the 3MH1-E. Check the field range and DC accuracy in the specification table before choosing the suitable configuration.

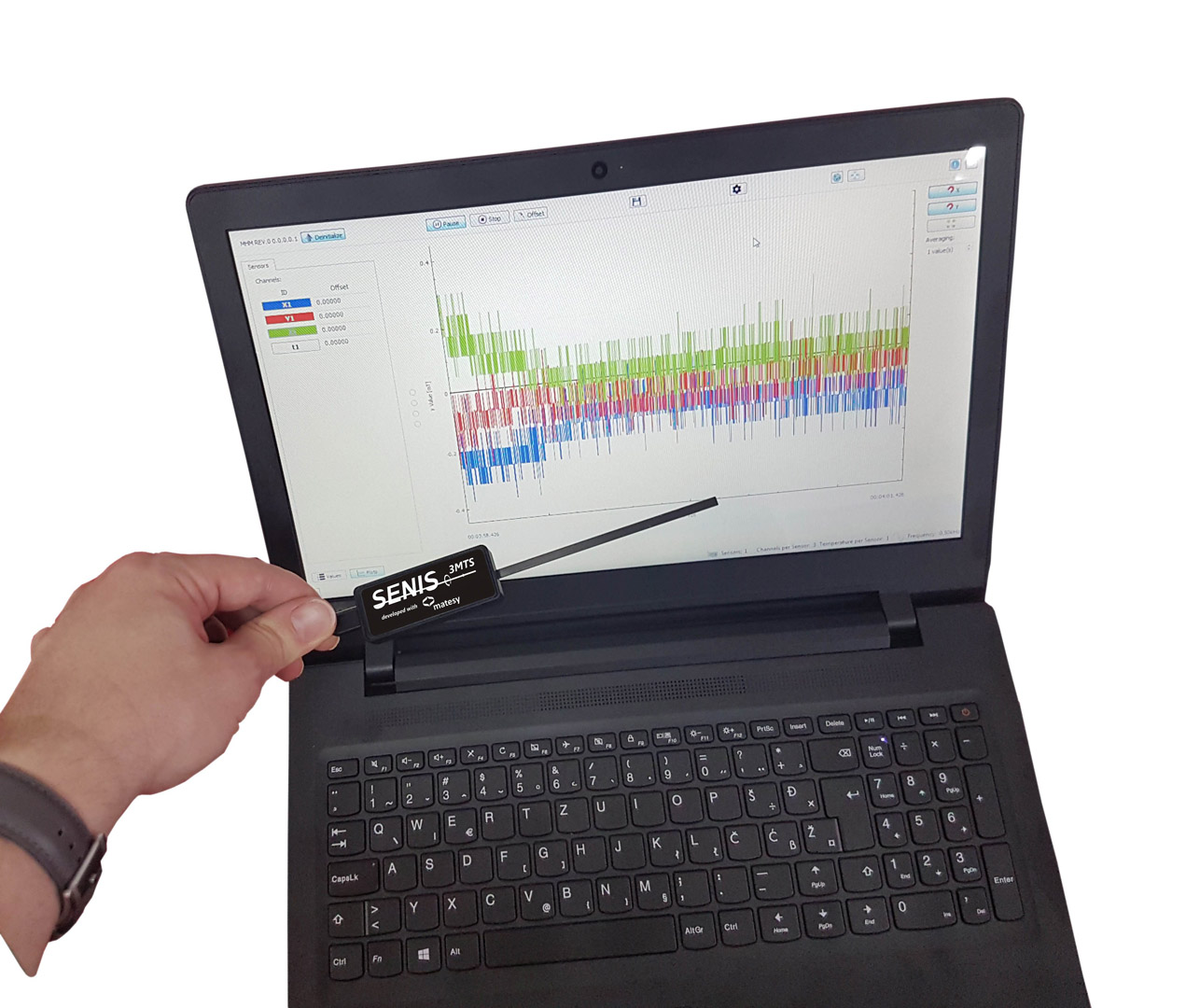

The PC software shows Bx, By, Bz, Btotal, Bmax, Bmin and probe temperature live, as numbers and graphs. It offers alarm, min/max hold and zeroing, logs data and exports to CSV and Excel (XLS). Logging has no fixed limits on interval or duration; these depend on your computer and operating system.

The software runs on Microsoft Windows 7, 10 and 11, and is included without a licence fee.

To build your own application, acquire the data over USB with the documented SENIS communication protocol, delivered with the instrument. You can use it from any language, for example Python, LabVIEW or MATLAB, and with your own software also on other operating systems such as Linux.

Calibration

Each 3MTS is delivered with a calibration certificate for all measurement ranges. Each measurement axis is calibrated and verified on each range at a reference field of ±80 mT. The certificate documents the calibration results, measurement conditions and traceability information.

Calibration is traceable to the SENIS calibration-laboratory reference, a 3MH6-E calibrated against a high-precision NMR reference. An ISO/IEC 17025 accredited calibration certificate is available as an option for fields up to 2 T.

SENIS recommends recalibration every year. Recalibration takes 2–3 weeks, subject to workload. To arrange it, write to .

What’s included and options

Included: the 3MTS, USB data cable, calibration certificate, USB memory stick with PC software, API and manuals, and a plastic carrying case.

Options:

Warranty and quotation

SENIS repairs or replaces free of charge a product that becomes defective within one year of delivery, provided it has been used properly. The defective part is returned at the customer’s cost and risk; mishandling is not covered.

A quotation states the configuration and requested accessories and is valid for 45 days unless stated otherwise. Prices are in Swiss francs (CHF), DAP or ex works SENIS (EXW). Typical lead time is 3–4 weeks.

How to buy

If your location is covered by an official SENIS distributor, request your quotation and order through that distributor. For other countries and areas, contact SENIS Switzerland directly. Find your regional contact.

Tell us the field range, required accuracy, probe access, cable length and how you want to record the data. If you are unsure, describe what you need to measure.

Request a quotation for your configuration

Frequently asked questions

Does the 3MTS measure all three axes at the same time? Yes. The integrated 3-axis Hall probe measures Bx, By and Bz simultaneously in a sensing volume of 150 × 10 × 150 µm³, and the software shows Btotal.

Which ranges does one probe cover? The same probe is used for all four ranges, from ±100 mT to ±20 T. Select the range that covers your field. For small fields, SENIS recommends another model: 1 % of full scale on the ±100 mT range is ±1 mT, and the noise level is 50 µT peak-to-peak even with 1 s averaging. Consider the 3MH1-E, with a ±4 mT range and 0.5 µT standard deviation at 10 samples/s with 1 s averaging, or the 3MH4, with approx. 1 µT RMS on its ±100 mT and ±500 mT ranges at 10 samples/s.

Can I log data in real time over USB? Yes. The software displays the fields and probe temperature live, logs the data and exports CSV and XLS. Your own application can acquire data with the documented SENIS communication protocol.

Can it measure AC fields? Yes, within its bandwidth of DC to 0.5 kHz. SENIS does not specify AC accuracy on this page; contact SENIS about your field amplitude and frequency.

What does it cost? From CHF 2,800 for the configuration listed under Included. Request a quotation for your configuration through your regional SENIS distributor or SENIS Switzerland.
