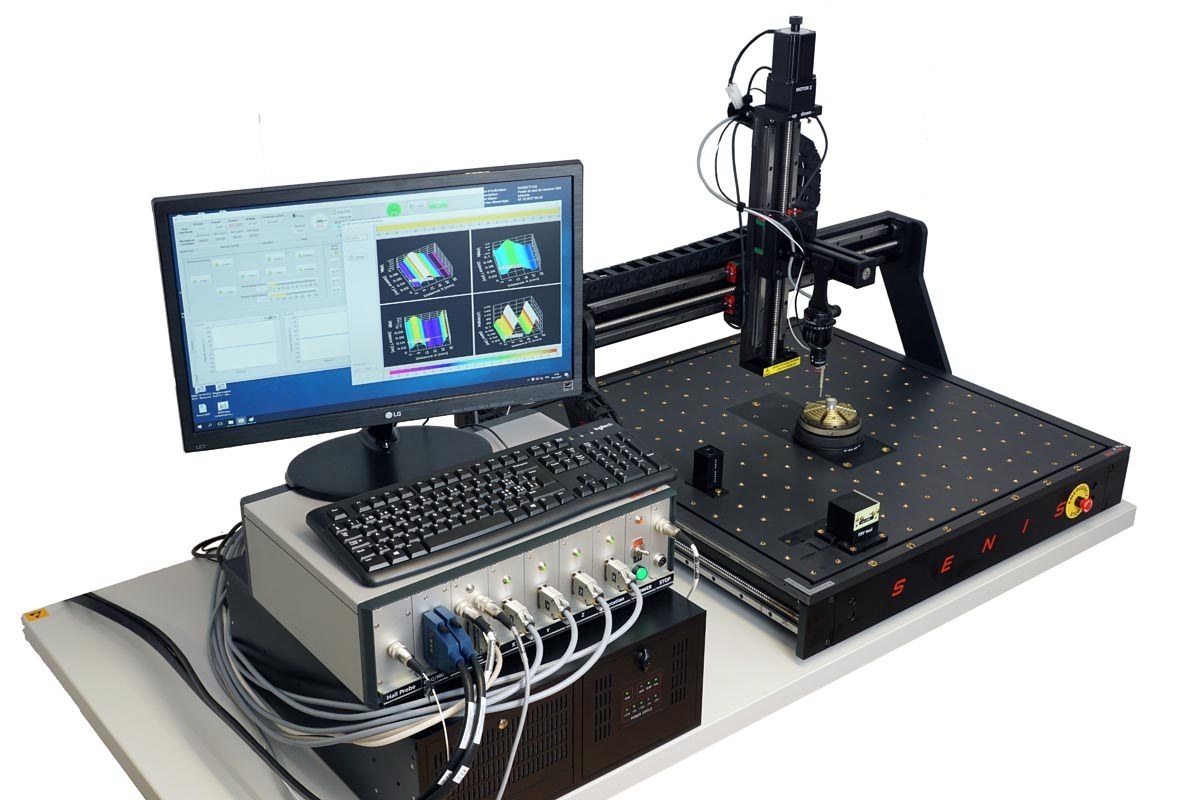

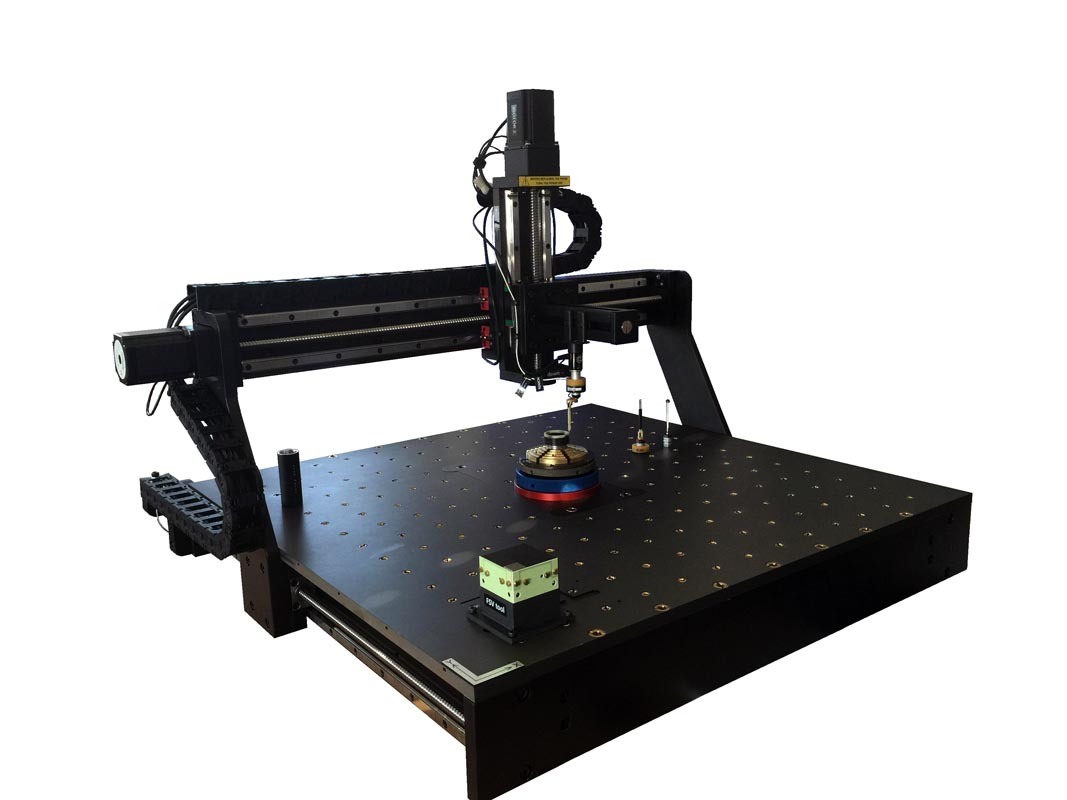

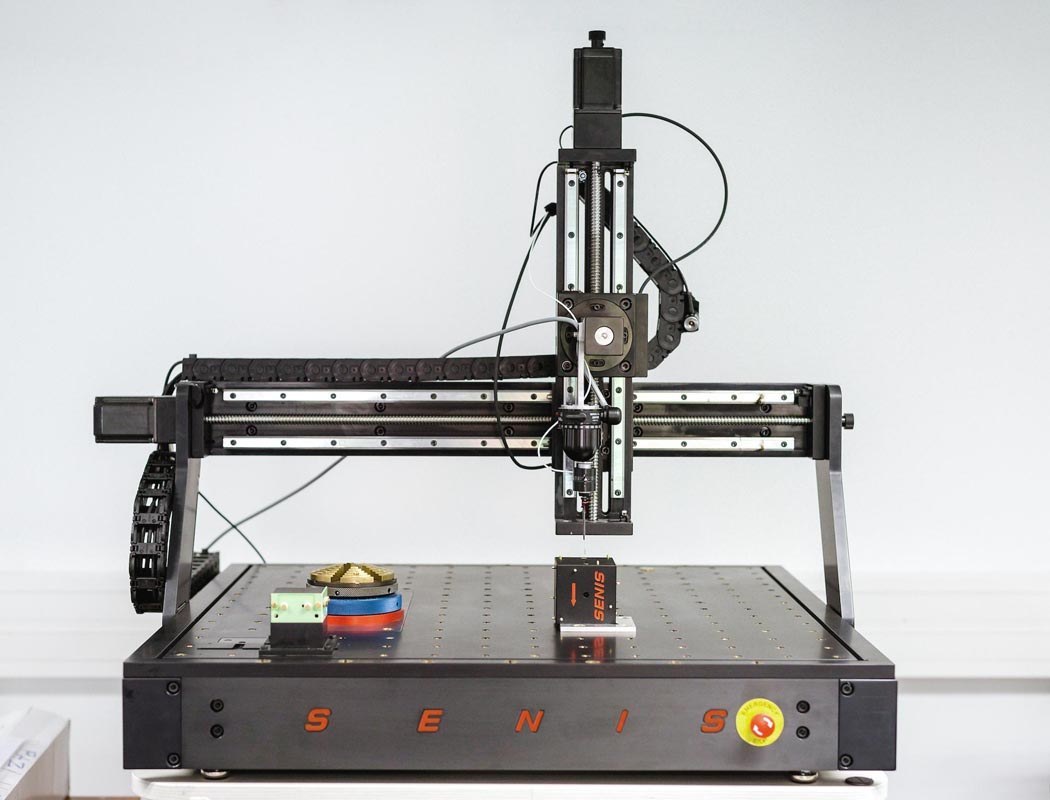

Large-size All-in-One Magnetic Field Mapper System MMS-1X-RS

  • High-end Magnetic Field Mapper MMS-1X-RS
  • Extended scanning volume: 570 x 570 x 390 mm
  • 3-axis Hall probe for 3D magnetic field measurement
  • Magnetic field measurement accuracy: 0.1%
  • Magnetic field resolution: standard: 40uT / option: 2uT
  • Selectable measurement ranges: 50mT – 2T
  • Probe positioning repeatability: ±5.0μm / ±0.025°
  • In-situ, automatic calibration
  • Easy probe interchangeability (Hall, AMR, Eddy-Current…)
  • Customizable, user-friendly mapper software
  • Sliding probes available

Application example: How to Measure the Magnetic Field Distribution of a PM Rotor

Application guide: How to Test and Monitor the Rotor Magnetic Field of Large Electrical Machines
