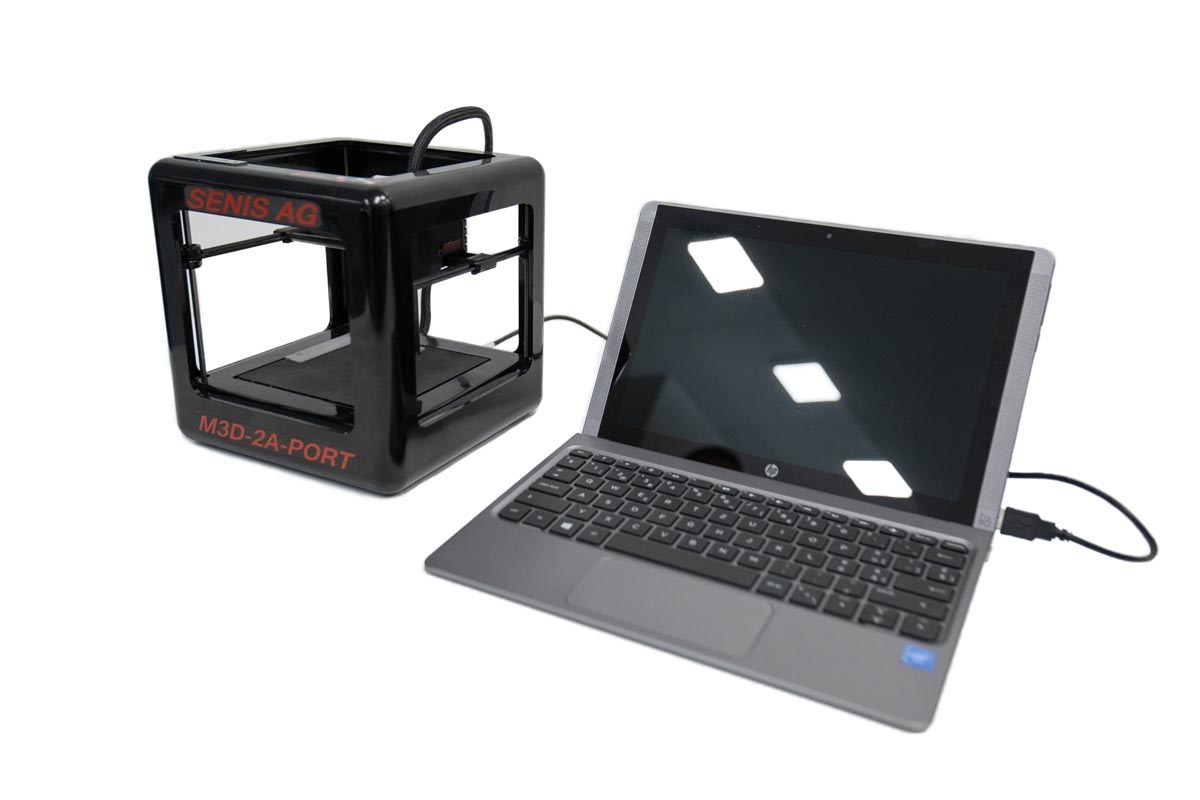

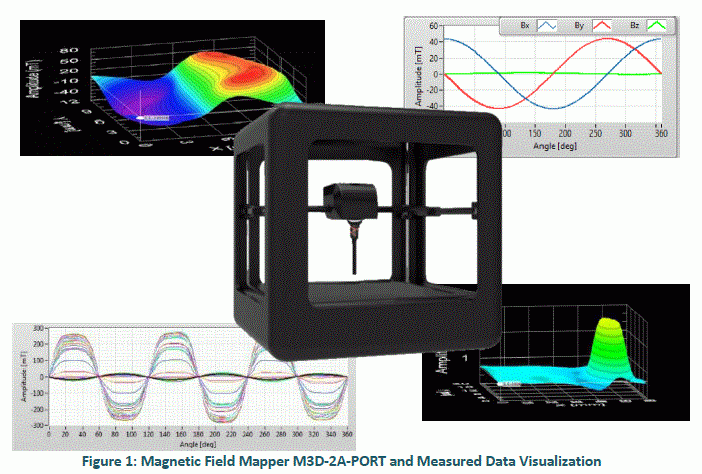

Portable Magnetic Field Mapping System M3D-2A-PORT
- 3-axis Hall probe for 3D magnetic field measurement
- Light (5Kg) and small 30 x 20 x 20 cm
- Scanning volume: 100 mm x 100 mm x 45 mm
- Magnetic field measurement accuracy: 1%
- Probe positioning resolution: 100μm
- Selectable measurement ranges: 100mT, 500mT, 2T
- User-friendly mapper software
